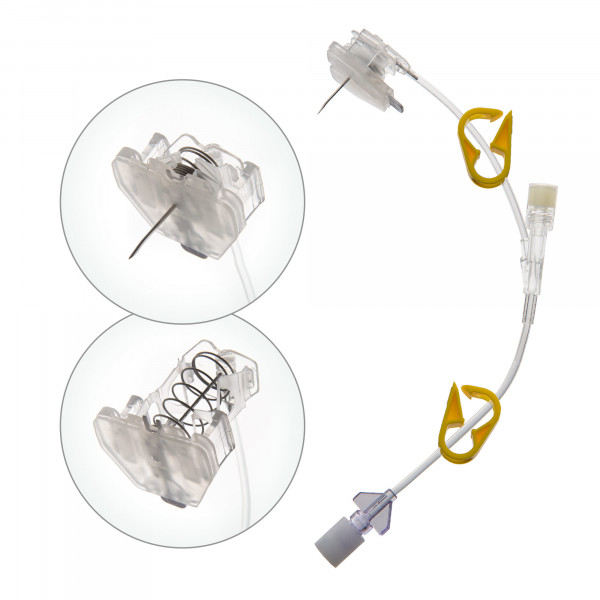

Safety Huber needles, curved, with extension line and Y-port
- • Sizes: 19-22 G
- • Length: 15-38 mm
They are designed for single use and easy insertion into vascular access device, and may be used for continuous or bolus injections of pain control drugs, chemotherapeutics agents, parenteral nutrition and blood products.
Product Features
- Additional Y-port for the possibility of additional drug infusion.
- Color-coded wings according to needle diameter for easy size identification.
- Different length of needle are available: 15mm, 20mm, 25mm, 30mm, 40mm.
- Unique bevel design promotes easy penetration and maximum life for the implantable access port.
- Non-siliconized to minimise "back out" effect.
- Needle tube and cut made of high-quality stainless steel for safe penetration into the silicone membrane of the port.
- Soft wings for secure needle fixation on the port system membrane.
- Extension tube with clamp for easy one-handed operation.
Available Configurations
| REF | Needle size, G | Needle length, mm | Line length, mm | Qty in box |
|---|---|---|---|---|
| 0256-MI815-19S | 19 | 15 | 21 | 1/-/250 |
| 0256-MI820-19S | 19 | 20 | 21 | 1/-/250 |
| 0256-MI825-19S | 19 | 25 | 21 | 1/-/250 |
| 0256-MI832-19S | 19 | 32 | 21 | 1/-/250 |
| 0256-MI838-19S | 19 | 38 | 21 | 1/-/250 |
| 0256-MI815-20S | 20 | 15 | 21 | 1/-/250 |
| 0256-MI820-20S | 20 | 20 | 21 | 1/-/250 |
| 0256-MI825-20S | 20 | 25 | 21 | 1/-/250 |
| 0256-MI832-20S | 20 | 32 | 21 | 1/-/250 |
| 0256-MI838-20S | 20 | 38 | 21 | 1/-/250 |
| 0256-MI815-22S | 22 | 15 | 21 | 1/-/250 |
| 0256-MI820-22S | 22 | 20 | 21 | 1/-/250 |
| 0256-MI825-22S | 22 | 25 | 21 | 1/-/250 |
| 0256-MI832-22S | 22 | 32 | 21 | 1/-/250 |
| 0256-MI838-22S | 22 | 38 | 21 | 1/-/250 |
