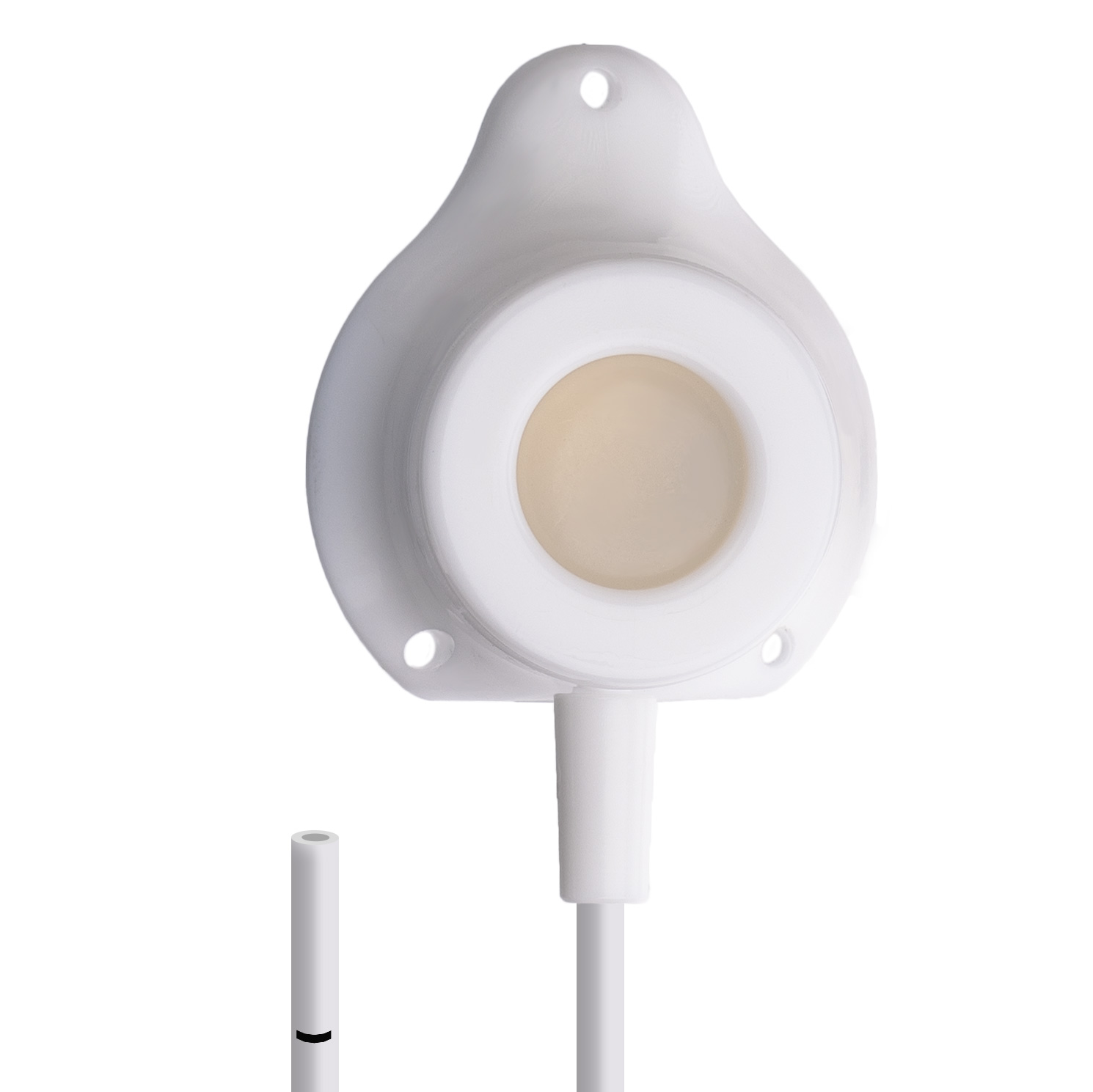

POM Implantable Port system
- • Standard and Low Profile
- • Catheter length: 700 mm
Plastic (polyoxymethylene) port systems are very light and they offer the advantage of minimal artefact formation using diagnostic methods such as magnetic resonance imaging.
Product Features
- Available in 2 models: Standard and Low Profile;
- Low Profile design for easier installation;
- Fully radiopaque, compatible with CT-scan and MRI-scan examinations;
- Equipped with a dense sealed silicone membrane that can withstand up to 1500 punctures;
- The design has 3 suture holes at the base of the port for a clear fixation, preventing any migration;
- Supplied with silicone catheter with atraumatic open tip;
- Reliable connection of the catheter with the port is carried out thanks to the sleeve made of polyoxymethylene;
- Does not contain latex, phthalates or PVC.
Available Configurations
| Ref | Type of port | Port size, mm | Septum, mm | Catheter size, Fr | Catheter length, mm | Port Inner volume, ml | Flow rate, ml/min | ||
|---|---|---|---|---|---|---|---|---|---|
| 22G | 20G | 19G | |||||||
| 0205-МVSP-06 | Standard | 33.4×29.5×14.8 | 11.8 | 6 | 700 | 0.70 | 13 | 27 | 29 |
| 0205-МVSP-07 | Standard | 33.4×29.5×14.8 | 11.8 | 7 | 700 | 0.70 | 13 | 27 | 29 |
| 0205-МVSP-7.8 | Standard | 33.4×29.5×14.8 | 11.8 | 7.8 | 700 | 0.70 | 13 | 27 | 29 |
| 0205-МVLPP-06 | Low Profile | 29.0×25.4×12.4 | 9.8 | 6 | 700 | 0.42 | 13 | 27 | 29 |
| 0205-МVLPP-07 | Low Profile | 29.0×25.4×12.4 | 9.8 | 7 | 700 | 0.42 | 13 | 27 | 29 |
| 0205-МVLPP-7.8 | Low Profile | 29.0×25.4×12.4 | 9.8 | 7.8 | 700 | 0.42 | 13 | 27 | 29 |
