Wound Drainage Set with 3 Spring Reservoir

  • •  Capacity: 200-800ml
  • •  Sizes: 7-19 Fr

3-spring Evacuator provides reliable suction for surgical cases with larger amounts of drainages. Transparent Sidewalls and Clear Volume Calibrations facilitate identification and measurement of exudate.

Product Features

  • Drainage container made of PVC with a volume of 200-800 ml;

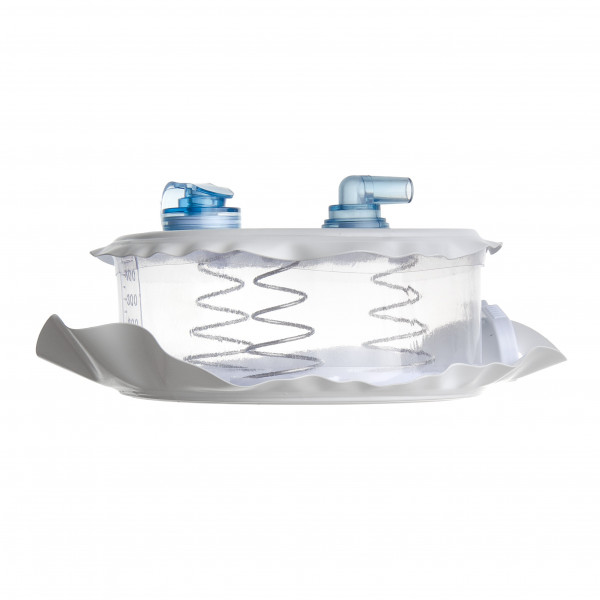

  • A stainless 3 steel springs are located along the entire length of the container to create a greater vacuum;
  • 3-spring Evacuator provides reliable suction for surgical cases with larger amounts of drainges;
  • Transparent Sidewalls and Clear Volume Calibrations facilitate identification and measurement of exudate;
  • Drain Port with Attached Reclosable Pouring Spout is provided permits convenient emptying of the reservoir unit;
  • Suction Port Equipped with an Anti-reflux Valve to preclude retrograde flow of drainage fluid during emptying and reactivation;

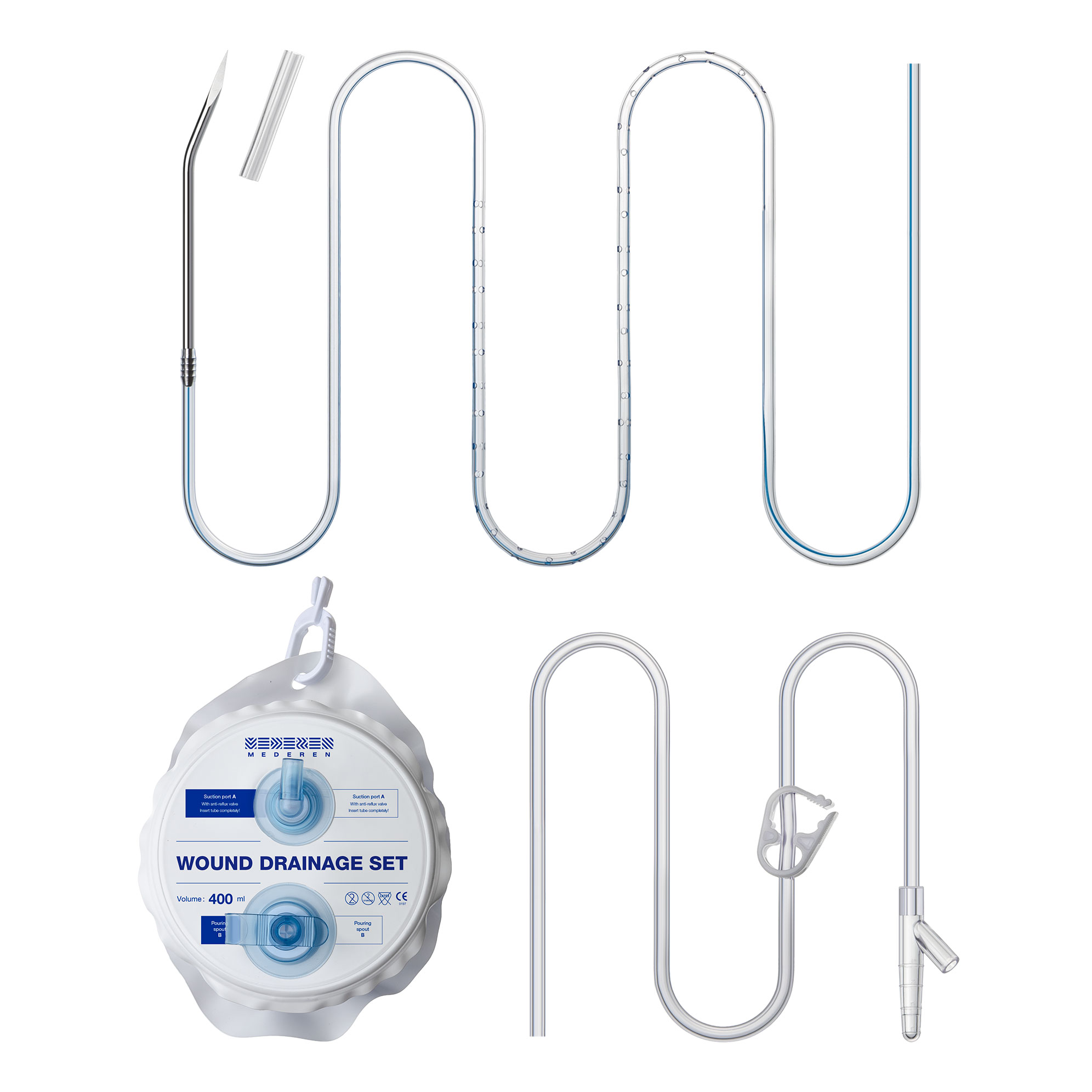

  • Available in convenient kit or separately with round or flat drains, with pre-attached trocar or not for procedures flexibility;
  • Catheter with a white radiopaque line and a Y-shaped connector at the end, with the possibility of attaching a second catheter;
  • The product is intended for single use;
  • Sterilization with ethylene oxide;
  • Does not contain latex, reducing the risk of developing an allergic reaction;
  • Packing (individual/transport) (1/18 pcs.)

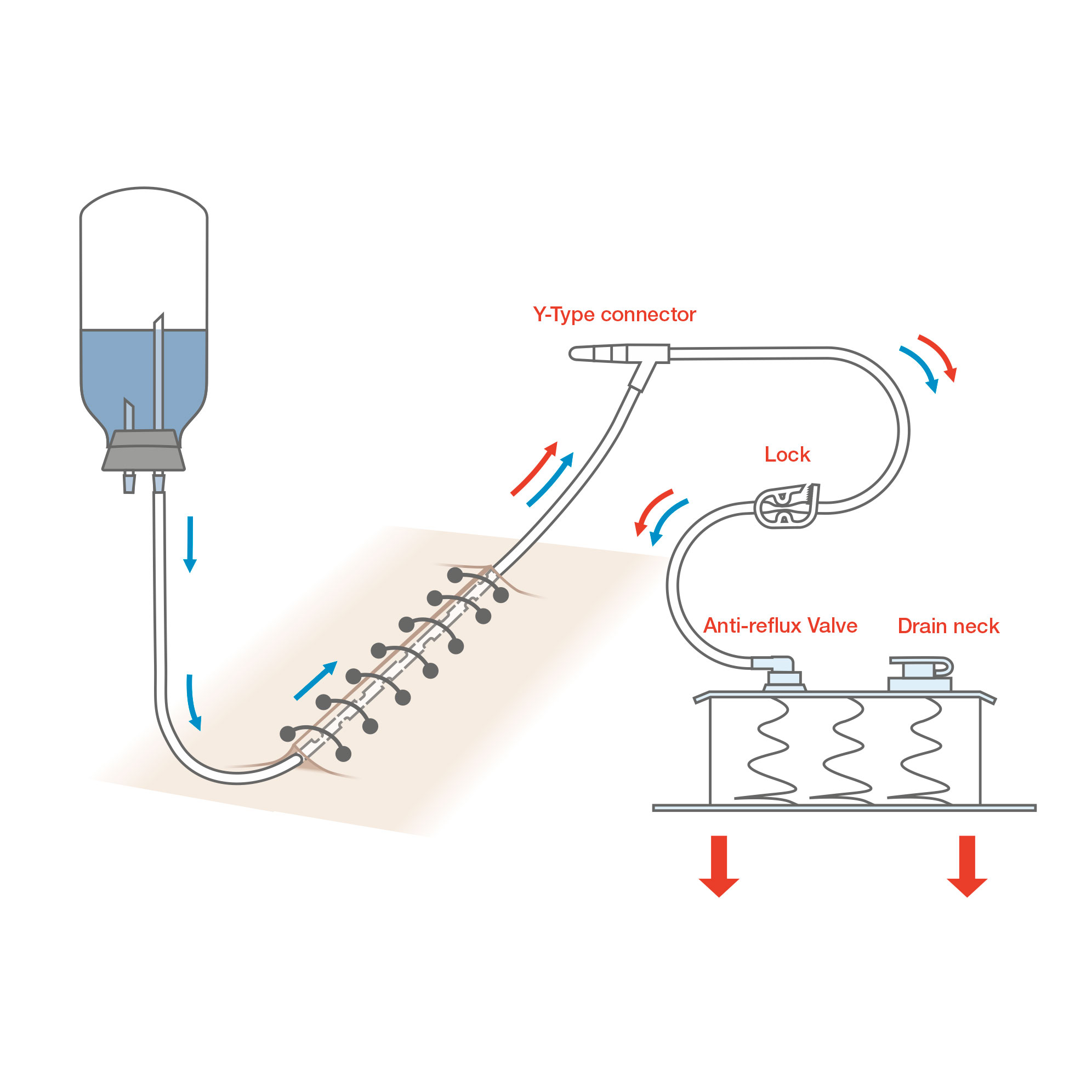

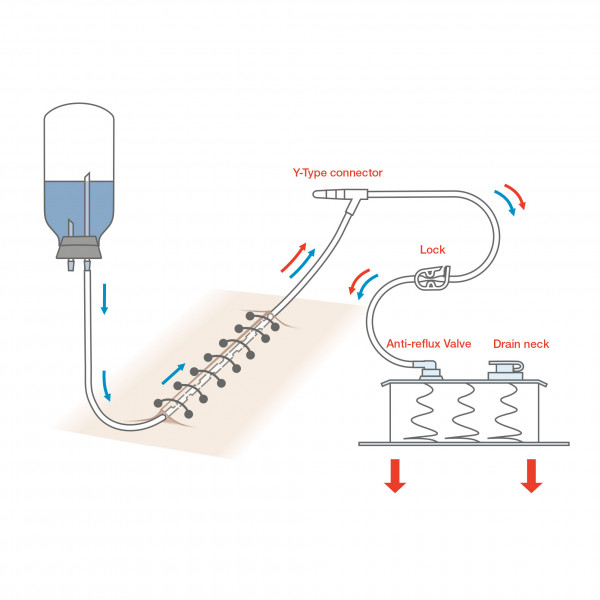

How to use

Available Configurations

REFReservoir volume (ml)Catheter size (Fr) Stylet dia (mm)ID, mmOD, mmQty in box
0615-М423-0720071,22,711 / 20
0615-М423-10200101,573,181 / 20
0615-М423-12200122,253,851 / 20
0615-М423-14200142,94,71 / 20
0615-М423-16200163,05,01 / 20
0615-М423-18200183,66,01 / 20
0615-М423-19200193,756,361 / 20
0615-М424-0740071,22,711 / 20
0615-М424-10400101,573,181 / 20
0615-М424-12400122,253,851 / 20
0615-М424-14400142,94,71 / 20
0615-М424-16400163,05,01 / 20
0615-М424-18400183,66,01 / 20
0615-М424-19400193,756,361 / 20
0615-М425-0760071,22,711 / 20
0615-М425-10600101,573,181 / 20
0615-М425-12600122,253,851 / 20
0615-М425-14600142,94,71 / 20
0615-М425-16600163,05,01 / 20
0615-М425-18600183,66,01 / 20
0615-М425-19600193,756,361 / 20
0615-М426-0780071,22,711 / 20
0615-М426-10800101,573,181 / 20
0615-М426-12800122,253,851 / 20
0615-М426-14800142,94,71 / 20
0615-М426-16800163,05,01 / 20
0615-М426-18800183,66,01 / 20
0615-М426-19800193,756,361 / 20
