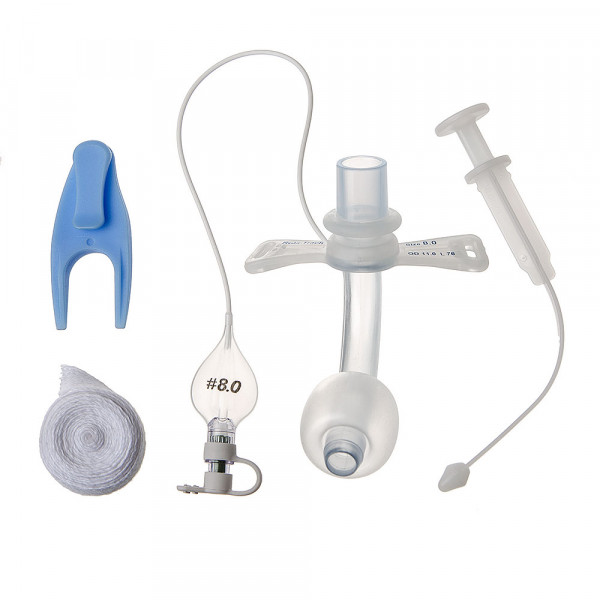

Tracheostomy tubes. R−Trach
- • Cuffed, I.D. 6.0-10.0
- • Uncuffed , I.D. 6.0-10.0
- • Pediatric uncuffed I.D. 3.0-5.0

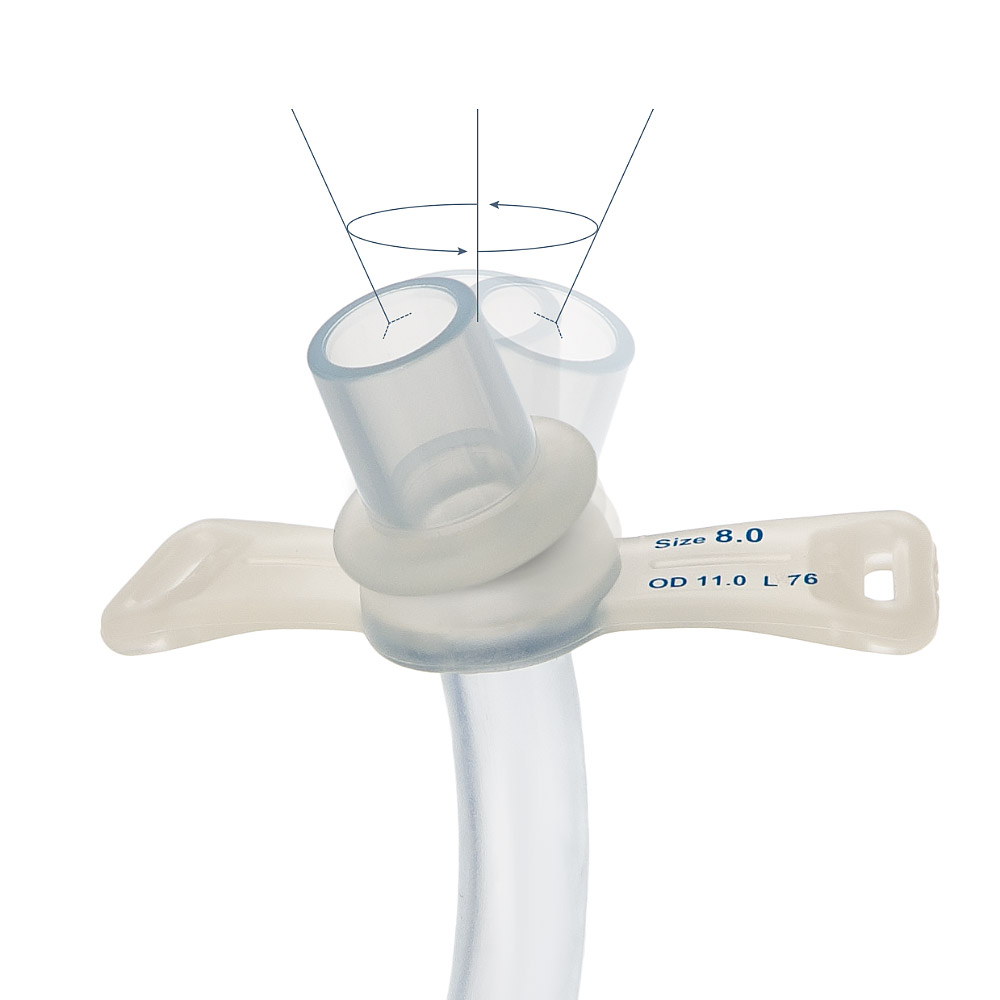

- • Elastic 15 mm connector
MEDEREN tracheostomy tubes are designed to provide an effective tracheal seal for ventilated patients to reduce the risk of aspiration. Because of the cuff’s large volume, a larger surface area is in contact with the trachea. This allows the cuff to create an effective seal against the trachea at a lower pressure.
Product Features
Mederen’s large and diverse range of tracheostomy tubes caters for the majority of needs associated with creating and maintaining a healthy neck stoma. The optimised ratio between inner and outer diameter is characteristic of all tubes and helps to support patient comfort and good work of breathing.
- Designed to establish and maintain an airway in seconds in emergency situations.
- Made of non-toxic, clear, kink-resistant PVC material to protect delicate mucosal tissue.
- Full-length Radio-opaque line aids the assessment of exact location of the tube.
- Soft, thin-walled cuff ensures effective sealing and atraumatic intubation and extubation.
- Rounded and smooth tip of the obturator minimizes tissue drag during intubation.
- Each unit of comes with an individual disconnect wedge to avoid cross infection.
- One-way valve can be efficient and easy for cuff inflation and deflation.
Available Configurations
Tracheostomy tube R−Trach cuffed
| Ref. No.: | ID, mm (internal ⌀) | OD, mm (external ⌀) | Length, cm | Qty (midbox / box) |
|---|---|---|---|---|
| 0125-М411-60 | 6.0 | 8.3 | 55 | 10 / 80 |
| 0125-М411-65 | 6.5 | 9.0 | 60 | 10 / 80 |
| 0125-М411-70 | 7.0 | 9.6 | 65 | 10 / 80 |
| 0125-М411-75 | 7.5 | 10.3 | 70 | 10 / 80 |
| 0125-М411-80 | 8.0 | 11.0 | 76 | 10 / 80 |
| 0125-М411-85 | 8.5 | 11.6 | 82 | 10 / 80 |
| 0125-М411-90 | 9.0 | 12.3 | 89 | 10 / 80 |
| 0125-М411-10 | 10.0 | 13.3 | 97 | 10 / 80 |
Tracheostomy tube R−Trach uncuffed
| Ref. No.: | ID, mm (internal ⌀) | OD, mm (external ⌀) | Length, cm | Qty (midbox / box) |
|---|---|---|---|---|
| 0125-М412-60 | 6.0 | 8.3 | 55 | 10 / 80 |
| 0125-М412-65 | 6.5 | 9.0 | 60 | 10 / 80 |
| 0125-М412-70 | 7.0 | 9.6 | 65 | 10 / 80 |
| 0125-М412-75 | 7.5 | 10.3 | 70 | 10 / 80 |
| 0125-М412-80 | 8.0 | 11.0 | 76 | 10 / 80 |
| 0125-М412-85 | 8.5 | 11.6 | 82 | 10 / 80 |
| 0125-М412-90 | 9.0 | 12.3 | 89 | 10 / 80 |
| 0125-М412-10 | 10.0 | 13.3 | 97 | 10 / 80 |
Tracheostomy tube R−Trach pediatric uncuffed
| Ref. No.: | ID, mm (internal ⌀) | OD, mm (external ⌀) | Length, cm | Qty (midbox / box) |
|---|---|---|---|---|
| 0125-М431-30 | 3.0 | 4.6 | 39 | 10 / 80 |
| 0125-М431-40 | 4.0 | 6.0 | 41 | 10 / 80 |
| 0125-М431-50 | 5.0 | 7.2 | 44 | 10 / 80 |
