PVC Infusion Extension Lines. Transparent

• 10 modifications
• Length: 10-300 mm

Extension Infusion Lines are used to lengthen the infusion line, in cases where the standard length is not enough.

PVC Infusion Extension Lines. Transparent

Product Features

Transparent tubes allows to monitor the administered infusion.
Awailable modifications with built-in infusion filters (5.0, 1.2, 0.2 µm) for removing air, microorganisms, and solid particles from solutions in the infusion line.
Spiral model for infusions under high pressure using infusion pumps and compressors.
Modification with T-port for painless administration of medications.
Modification with flow regulator for infusion of drugs that require precise dosing.
Modifications with needleless connectors to ensure complete sealing and reduce the risk of catheter-associated infections.
Latex-free and phthalates-free.
Equipped with luer-lock connectors (male/female).
Breaking force: not less than 50 N.
Inner/outer tube diameter 3.0x4.1mm, 1.0x2.3mm.
Line length 10-300 cm.

Available Configurations

With Needless port

With filter

Standard

With T-port

With flow regulator and Y-port

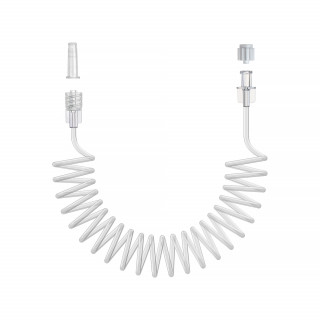

Spiral model

REF	Description	Line length, cm	Qty in box
1416-M300-10	Ø3.0x4.1 mm	10	100
1416-M300-30	Ø3.0x4.1 mm	30	100
1416-M300-50	Ø3.0x4.1 mm	50	100
1416-M300-80	Ø3.0x4.1 mm	80	100
1416-M300-100	Ø3.0x4.1 mm	100	100
1416-M300-150	Ø3.0x4.1 mm	150	100
1416-M300-200	Ø3.0x4.1 mm	200	100
1416-M300-250	Ø3.0x4.1 mm	250	100
1416-M300-300	Ø3.0x4.1 mm	300	100
1416-M400-10	Ø1.0x2.3 mm	10	100
1416-M400-30	Ø1.0x2.3 mm	30	100
1416-M400-50	Ø1.0x2.3 mm	50	100
1416-M400-80	Ø1.0x2.3 mm	80	100
1416-M400-100	Ø1.0x2.3 mm	100	100
1416-M400-150	Ø1.0x2.3 mm	150	100
1416-M400-200	Ø1.0x2.3 mm	200	100
1416-M400-250	Ø1.0x2.3 mm	250	100
1416-M400-300	Ø1.0x2.3 mm	300	100
1416-M500-30	With flow regulator	30	50
1416-M500-50	With flow regulator	50	50
1416-M500-80	With flow regulator	80	50
1416-M500-100	With flow regulator	100	50
1416-M500-150	With flow regulator	150	50
1416-M600T-10	With T-port	10	100
1416-M300-10F1.2	With filter 1.2µm, Ø3.0x4.1 mm	10	100
1416-M300-30F1.2	With filter 1.2µm, Ø3.0x4.1 mm	30	100
1416-M300-50F1.2	With filter 1.2µm, Ø3.0x4.1 mm	50	100
1416-M300-801.2F	With filter 1.2µm, Ø3.0x4.1 mm	80	100
1416-M300-100F1.2	With filter 1.2µm, Ø3.0x4.1 mm	100	100
1416-M300-150F1.2	With filter 1.2µm, Ø3.0x4.1 mm	150	50
1416-M300-200F1.2	With filter 1.2µm, Ø3.0x4.1 mm	200	50
1416-M300-10F0.2	With filter 0.2µm, Ø3.0x4.1 mm	10	100
1416-M300-30F0.2	With filter 0.2µm, Ø3.0x4.1 mm	30	100
1416-M300-50F0.2	With filter 0.2µm, Ø3.0x4.1 mm	50	100
1416-M300-80F0.2	With filter 0.2µm, Ø3.0x4.1 mm	80	100
1416-M300-100F0.2	With filter 0.2µm, Ø3.0x4.1 mm	100	100
1416-M300-150F0.2	With filter 0.2µm, Ø3.0x4.1 mm	150	50
1416-M300-200F0.2	With filter 0.2µm, Ø3.0x4.1 mm	200	50
1416-M300-300F0.2	With filter 0.2µm, Ø3.0x4.1 mm	300	50
1416-M300-10F5.0	With filter 5.0µm, Ø3.0x4.1 mm	10	100
1416-M300-30F5.0	With filter 5.0µm, Ø3.0x4.1 mm	30	100
1416-M300-50F5.0	With filter 5.0µm, Ø3.0x4.1 mm	50	100
1416-M300-80F5.0	With filter 5.0µm, Ø3.0x4.1 mm	80	100
1416-M300-100F5.0	With filter 5.0µm, Ø3.0x4.1 mm	100	100
1416-M300-150F5.0	With filter 5.0µm, Ø3.0x4.1 mm	150	50
1416-M300-200F5.0	With filter 5.0µm, Ø3.0x4.1 mm	200	50
1416-M400-10F1.2	With filter 1.2µm, Ø1.0x2.3 mm	10	100
1416-M400-30F1.2	With filter 1.2µm, Ø1.0x2.3 mm	30	100
1416-M400-50F1.2	With filter 1.2µm, Ø1.0x2.3 mm	50	100
1416-M400-80F1.2	With filter 1.2µm, Ø1.0x2.3 mm	80	100
1416-M400-100F1.2	With filter 1.2µm, Ø1.0x2.3 mm	100	100
1416-M400-150F1.2	With filter 1.2µm, Ø1.0x2.3 mm	150	100
1416-M400-200F1.2	With filter 1.2µm, Ø1.0x2.3 mm	200	50
1416-M400-10F0.2	With filter 0.2µm, Ø1.0x2.3 mm	10	100
1416-M400-30F0.2	With filter 0.2µm, Ø1.0x2.3 mm	30	100
1416-M400-50F0.2	With filter 0.2µm, Ø1.0x2.3 mm	50	100
1416-M400-80F0.2	With filter 0.2µm, Ø1.0x2.3 mm	80	100
1416-M400-100F0.2	With filter 0.2µm, Ø1.0x2.3 mm	100	100
1416-M400-150F0.2	With filter 0.2µm, Ø1.0x2.3 mm	150	100
1416-M400-200F0.2	With filter 0.2µm, Ø1.0x2.3 mm	200	50
1416-M400-300F0.2	With filter 0.2µm, Ø1.0x2.3 mm	300	50
1416-M400-10F5.0	With filter 5.0µm, Ø1.0x2.3 mm	10	100
1416-M400-30F5.0	With filter 5.0µm, Ø1.0x2.3 mm	30	100
1416-M400-50F5.0	With filter 5.0µm, Ø1.0x2.3 mm	50	100
1416-M400-80F5.0	With filter 5.0µm, Ø1.0x2.3 mm	80	100
1416-M400-100F5.0	With filter 5.0µm, Ø1.0x2.3 mm	100	100
1416-M400-150F5.0	With filter 5.0µm, Ø1.0x2.3 mm	150	100
1416-M400-200F5.0	With filter 5.0µm, Ø1.0x2.3 mm	200	50
1416-M700C-150	Spiral type	150	50
1416-M701-10	With Needless port	10	100
