Catheter mounts. Expandable

• Straight connectors
• Elbow connectors
• Double swivel elbow connectors
• Elbow connectors with elastomeric cap

Expandable catheter mounts have a concertina design to allow for complete positioning control. It allows the adjustment of compressible volume and the adjustment of volume by 4 times, excluding connectors.

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 15F . Machine-side connector: 22F с фильтром бактериально-вирусным с функцией тепло-влаго обмена with capnography port

Length: 15 cm. Patient connector: straight 15F . Machine-side connector: 22F with bacterial-viral filter with heat-moisture exchange function with capnography port

Length: 15 cm. Patient connector: angled double swivel with capnography port 22M/15F M15/F22. Machine-side connector: 22F

Length: 15 cm. Patient connector: angled double swivel with capnography port 22M/15F. Machine-side connector: 15M

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 22M/15F M15/F22. Machine-side connector: 22F с фильтром бактериально-вирусным с функцией тепло-влаго обмена with capnography port

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 22M/15F. Machine-side connector: 22F

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 22M/15F M15/F22. Machine-side connector: 15M

Length: 15 cm. Patient connector: angled double swivel M15/F22. Machine-side connector: 22F

Length: 15 cm. Patient connector: straight M15. Machine-side connector: 22F

Product Features

Made of medical grade EVA, PE or PVC
Connector types of smoothboretube: Straight connector, Elbow connector, Double swivel elbow connector, Elbow connector with Elastomeric cap,
The purpose of the Catheter Mount is to reduce the drag on the Endotracheal tube or Laryngeal mask by transferring the weight of the breathing system away from the patient.
15mm standard tubes allows ultimate flexibility during operative and clinical procedures when patient maneuvering may be required.
22mm F/15mm M end connectors allow for secure fitting to all Y piece meeting the approved standards.
Suitable for use of anesthesia, respiratory and resuscitator.
Have different sizes, suitable for pediatric and adult.
PVC-Free design of gas leading components eliminates risk of softeners such as DEHP
Qty.Cs: 100 pcs

Available Configurations

Ref: 0125-MR930-01

Length: 15 cm. Patient connector: straight M15. Machine-side connector: 22F

Ref: 0125-MR930-02

Length: 15 cm. Patient connector: angled double swivel M15/F22. Machine-side connector: 22F

Ref: 0125-MR931-01

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 22M/15F M15/F22. Machine-side connector: 15M

Ref: 0125-MR931-02

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 22M/15F. Machine-side connector: 22F

Ref: 0125-MR931-03

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 22M/15F M15/F22. Machine-side connector: 22F с фильтром бактериально-вирусным с функцией тепло-влаго обмена with capnography port

Ref: 0125-MR932-01

Length: 15 cm. Patient connector: angled double swivel with capnography port 22M/15F. Machine-side connector: 15M

Ref: 0125-MR932-02

Length: 15 cm. Patient connector: angled double swivel with capnography port 22M/15F M15/F22. Machine-side connector: 22F

Ref: 0125-MR932-03

Length: 15 cm. Patient connector: straight 15F . Machine-side connector: 22F with bacterial-viral filter with heat-moisture exchange function with capnography port

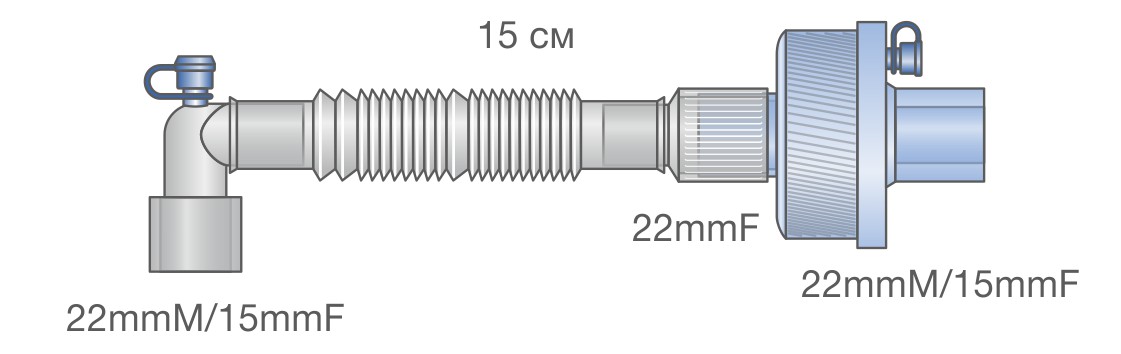

Ref: 0125-MR932-04

Length: 15 cm. Patient connector: angled double swivel with a port for bronchoscopy and sanitation 15F . Machine-side connector: 22F с фильтром бактериально-вирусным с функцией тепло-влаго обмена with capnography port
