Closed Suction System «FoolProof»

  • •  Adult: for 24 h and 72 h
  • •  Pediatric: for 24 h

Mederen closed suction systems are available for 24 hour or 72 hour usage depending on patient requirements. There are two length options to allow attachment to either endotracheal (54 cm) or tracheostomy (30.5 cm) tubes.

Product Features

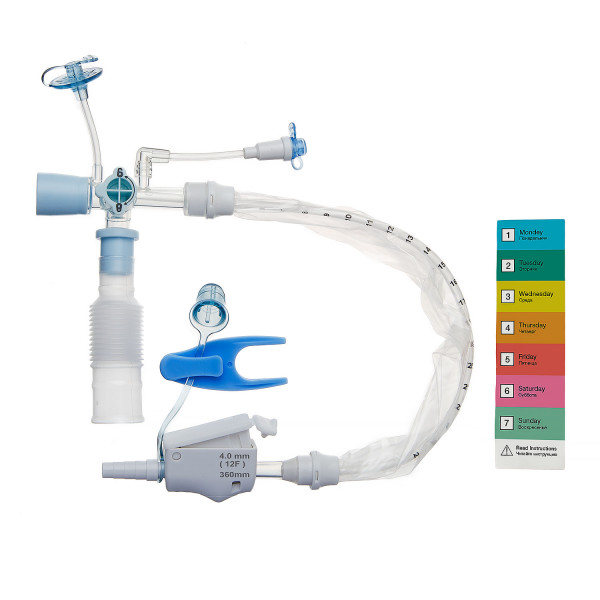

The FoolProof closed aspiration system is made from high-quality transparent material that allows for visual monitoring of the aspiration process. The soft protective cover effectively isolates the aspiration catheter and ensures easy movement of the catheter along the longitudinal axis. The system can be made with or without an MDI port, which facilitates the administration of medication endotracheally and lavage.

Mederen produces a pediatric closed aspiration system while taking into account the peculiarities of a child's immune system. The pediatric system has a wide range of sizes, and each device comes with a set of Y-shaped connectors of various diameters that allow the system to be directly connected to the endotracheal tube by removing its own connector. This design reduces unnecessary stress on the patient's respiratory system and makes it less cumbersome.

  • Reliable protection against accidental vacuum activation with a special locking button.
  • The system is sterile and for single use.
  • Latex-free to minimize the risk of allergic reactions.
  • Freely rotating connectors with a double ball-and-socket design prevent twisting of the breathing tubes.
  • The FoolProof closed suction system comes with a corrugated connector that provides additional flexibility to the breathing circuit.
  • Comes with 7 different colored stickers to mark the day of removal or replacement of the system.
  • The system size can be easily identified by the color-coded vacuum control button.
  • The 72-hour closed suction system has a locking access valve to the patient, allowing for completely sealed conditions during catheter suctioning.
  • The pediatric closed suction system comes with Y-shaped connectors of different diameters.

Available Configurations

Adult Closed Suction System. 24 hour

REF Size, Fr MDI port Usage MAX time Length Color code
Endotracheal type
0121-M224E-10 10 - 24 hour 54 cm
0121-M224E-10M 10 + 24 hour 54 cm
0121-M224E-12 12 - 24 hour 54 cm
0121-M224E-12M 12 + 24 hour 54 cm
0121-M224E-14 14 - 24 hour 54 cm
0121-M224E-14M 14 + 24 hour 54 cm
0121-M224E-16 16 - 24 hour 54 cm
0121-M224E-16M 16 + 24 hour 54 cm
Tracheostomy type
0121-M224T-10 10 - 24 hour 30.5 cm
0121-M224T-10M 10 + 24 hour 30.5 cm
0121-M224T-12 12 - 24 hour 30.5 cm
0121-M224T-12M 12 + 24 hour 30.5 cm
0121-M224T-14 14 - 24 hour 30.5 cm
0121-M224T-14M 14 + 24 hour 30.5 cm
0121-M224T-16 16 - 24 hour 30.5 cm
0121-M224T-16M 16 + 24 hour 30.5 cm

Adult Closed Suction System. 72 hour

REF Size, Fr MDI port Usage MAX time Length Color code
Endotracheal type
0121-M272E-10 10 - 72 hour 54 cm
0121-M72E-10M 10 + 72 hour 54 cm
0121-M272E-12 12 - 72 hour 54 cm
0121-M72E-12M 12 + 72 hour 54 cm
0121-M272E-14 14 - 72 hour 54 cm
0121-M72E-14M 14 + 72 hour 54 cm
0121-M272E-16 16 - 72 hour 54 cm
0121-M72E-16M 16 + 72 hour 54 cm
Tracheostomy type
0121-M272T-10 10 - 72 hour 30.5 cm
0121-M272T-10M 10 + 72 hour 30.5 cm
0121-M272T-12 12 - 72 hour 30.5 cm
0121-M272T-12M 12 + 72 hour 30.5 cm
0121-M272T-14 14 - 72 hour 30.5 cm
0121-M272T-14M 14 + 72 hour 30.5 cm
0121-M272T-16 16 - 72 hour 30.5 cm
0121-M272T-16M 16 + 72 hour 30.5 cm

Pediatric Closed Suction System. 24 hour

Size, Fr Y-type connectors REF MDI port Usage MAX time Length Color code
5 2.0/2.5 mm 0121-M224P-05 - 24 hour 30.5 cm
5 2.0/2.5 mm 0121-M224P-05M + 24 hour 30.5 cm
6 2.5/3.0/3.5 mm 0121-M224P-06 - 24 hour 30.5 cm
6 2.5/3.0/3.5 mm 0121-M224P-06M + 24 hour 30.5 cm
7 3.0/3.5/4.0 mm 0121-M224P-07 - 24 hour 30.5 cm слоновая кость
7 3.0/3.5/4.0 mm 0121-M224P-07M + 24 hour 30.5 cm слоновая кость
8 3.5/4.0/4.5 mm 0121-M224P-08 - 24 hour 30.5 cm
8 3.5/4.0/4.5 mm 0121-M224P-08M + 24 hour 30.5 cm
10 4.5/5.0/5.5 mm 0121-M224P-10 - 24 hour 30.5 cm черный
10 4.5/5.0/5.5 mm 0121-M224P-10M + 24 hour 30.5 cm черный

Guide for Trach/Suction Catheter Sizing

Suction catheter size Tracheal tube size
5 Fr 2.0, 2.5. 3.0
6 Fr 2.5, 3.0, 3.5
7 Fr 3.0, 3.5, 4.0
8 Fr 3.5 Fr, 4.0 Fr, 4.5 Fr, 5 Fr
10 Fr 5 Fr, 5.5 Fr, 6.0 Fr, 6.5 Fr
12Fr 6.0 Fr, 6.5 Fr, 7.0 Fr, 7.5 Fr
14 Fr 6.5 Fr, 7.0 Fr 7.5 Fr, 8.0 Fr
16 Fr 8.0 Fr, 8.5 Fr, 9.0 Fr, 9.0 Fr, 10.0 Fr
Note! Do not use a suction catheter larger than 2/3 of the internal diameter of the tracheal tube.
