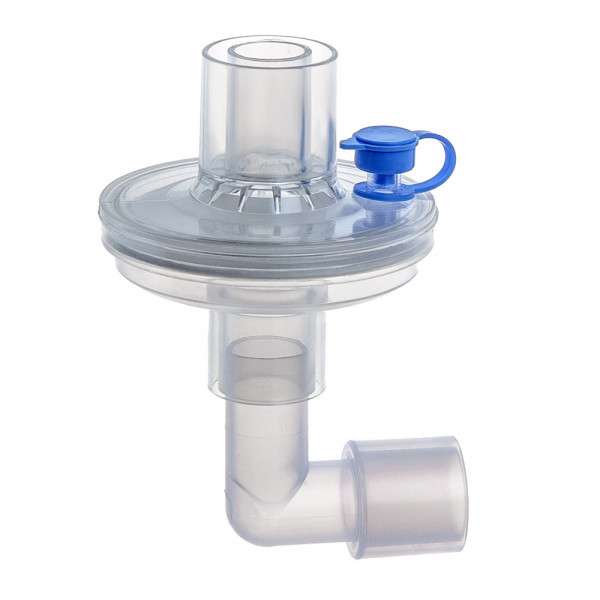

Breathing Filters. Bacterial-Viral
- • Straight connector
- • Angled connector
Bacterial/Viral Filter is for humidifying, heating the breath between patients and the machine.
Product Features
- Universal connectors used in the respiratory circuit both on the side of the ventilator (22F/15M), and on the patient's side (22F/15M)
- Filters include port with Luerlock connector
- 150-1500 ml recommended tidal volume
- 99.9%+ bacterial/viral efficiency
- The maximum duration of use is 24 hours
- Low resistance 0.8 cm H2O @ 30 L/Min, 1.7 cm H2O @ 60 L/Min, 2.7 cm H2O @ 90 L/Min
- Weight 19 g, 25.5 g
- Dead Space 33 ml, 36 ml
- Individually packaged, 50 to a case
Available Configurations
| Specs | Straight connector | Angled connector | |
|---|---|---|---|
| Ref | 0114-M311-01S | 0114-M311- 02S | |
| Dead space | 33 ml | 36 ml | |
| Antibacterial efficacy | >99.9999 % | >99.9999 % | |
| Antivirus effectiveness | >99.999 % | > 99.999 % | |
| Membrane area | 26.4 cm2 | 26.4 cm2 | |
| Flow resistance | 30 l/min | 0,8 см Н2О (78,45 Pa) | 0,8 см Н2О (78,45 Pa) |
| 60 l/min | 1,7 см Н2О (166,70 Pa) | 1,7 см Н2О (166,70 Pa) | |
| 90 l/min | 2,7 см Н2О (264,77 Pa) | 2,7 см Н2О (264,77 Pa) | |
| Weight | 19 g | 24,5 g | |
| Qty in box | 50 | 50 | |
