Central Venous Catheter Kits. Optimum ECG

• 1-lumen: 14-18 G
• 2-lumen: 4-8.5 F
• 3-lumen: 4.5-7 F
• 4-lumen: 8.5 F
• ECG cable

ECG cable allows for ECG monitoring of the catheter position by connecting to an adapter with subsequent signal conversion and transmission to an ECG monitor that displays the received data.

Central Venous Catheter Kits. Optimum ECG

Product Features

Superb material with best biological compatibilities
The flexible polyurethane material features favorable biological compatibility and dual protection against infections. The catheter is detective under the X-ray.
Less intimal damage, irritation and reduces perforation risk
an integral catheter tip, which is more pliant than the catheter body, minimizes the damages to the blood vessel walls during the insertion process.
Fewer risks in puncture
The Introducer Syringe with a check valve allows a spring-wire guide to be placed directly through the syringe into the vessel lumen so there Â¡s less trauma, less blood exposure risk, and virtually no chance for air embolism.
More efficient placements
The guidewire advancer helping you easily straighten the J-tip of the spring-wire guide and insert it with one hand, advancing it to the proper position with your thumb.
More accurate placements
A centimeter-marked spring-wire guide (.025", .032" and .035" diameters available) lets you know how much wire you have inserted and helps you avoid entering the heart. And catheter centimeter markings aid in determining insertion depth.

Other Details:

Central Venous Catheter reduces the risk and vascular trauma due it specially formulated and biocompatible Polyurethane material which provides strength during insertion and also softens at body temperature to conform to the body tissues
Soft Flexible J-Tip Guide wire provides good torque to ensure firm insertion and also prevents vessel perforation
ECG cable allows for ECG monitoring of the catheter position by connecting to an adapter with subsequent signal conversion and transmission to an ECG monitor that displays the received data.
Equipped with Y-type introducer needle with check valve
Specially designed soft & beveled tip for smooth & easy insertion of catheter
Clear and definite marking facilitates correct placement of catheter tip
Radio-opaque catheter with length 150-300 mm available in Single Lumen, Double Lumen, Triple Lumen and Quadro Lumen
Sterile product fro single use

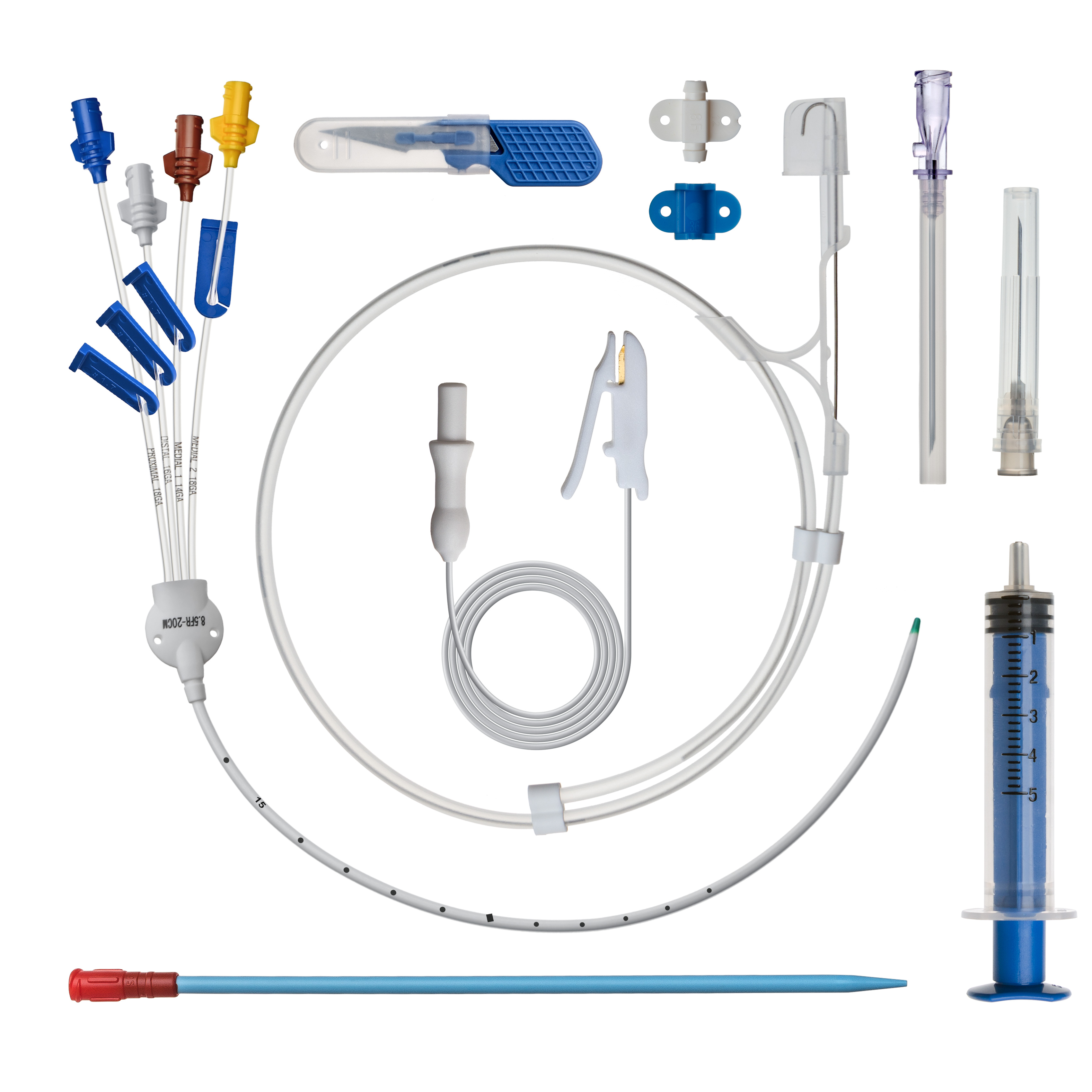

Contains scalpel, Catheter holder and clamp, indwelling catheter, injection cap, extension line clamp and other necessary equipment

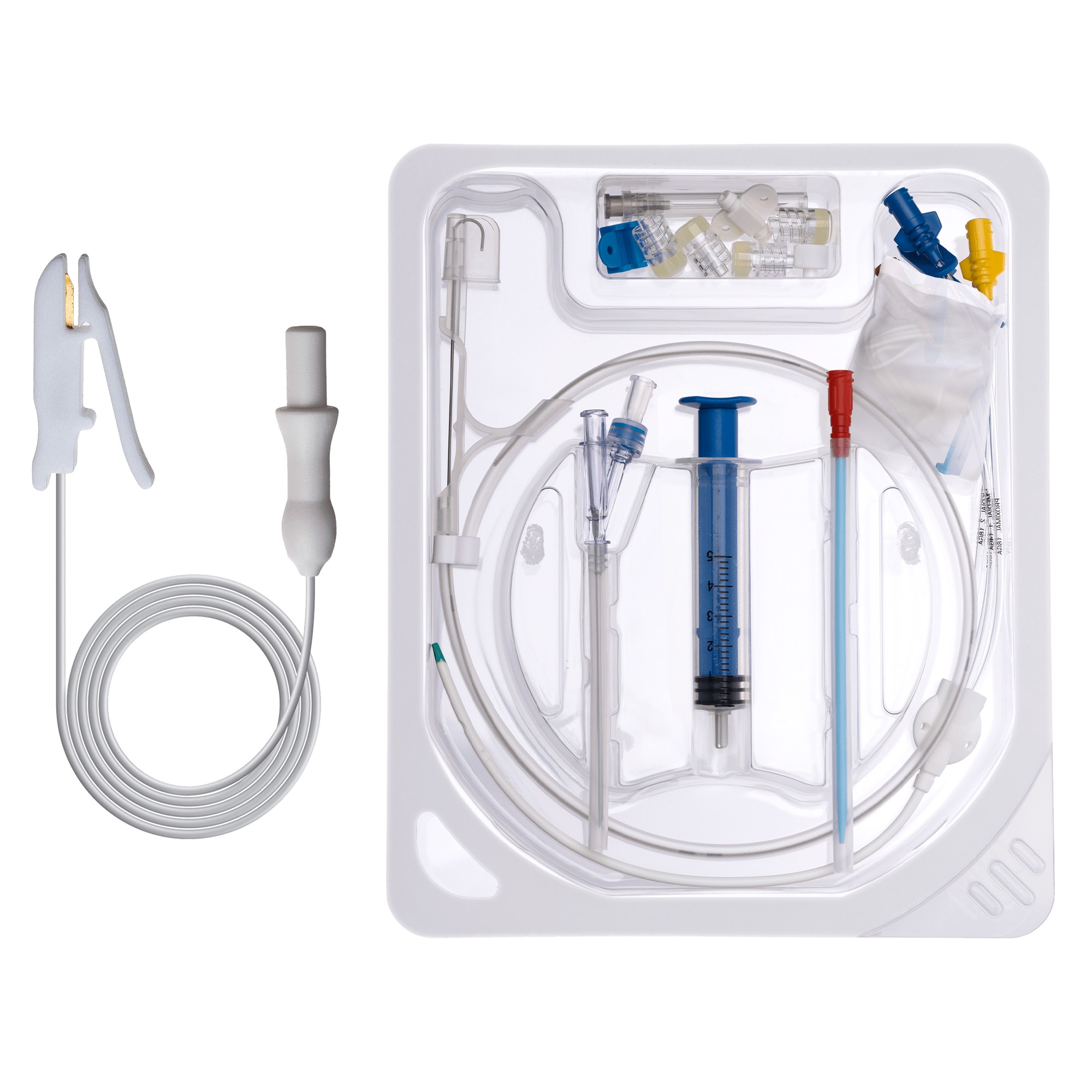

Individually tray packed

Available Configurations

Single Lumen catheter

REF	Catheter size	Catheter length	Puncture needle size	Introducer needle size	Vessel Dilator size
MB1OE-14G13	14G	13 cm	0,81 mm × 50 cm	18G	8F
MB1OE-14G15	14G	15 cm	0,81 mm × 50 cm	18G	8F
MB1OE-14G16	14G	16 cm	0,81 mm × 50 cm	18G	8F
MB1OE-14G20	14G	20 cm	0,81 mm × 60 cm	18G	8F
MB1OE-14G30	16G	30 cm	0,81 mm × 70 cm	18G	8F
MB1OE-16G13	16G	13 cm	0,81 mm × 50 cm	18G	6F
MB1OE-16G15	16G	15 cm	0,81 mm × 50 cm	18G	6F
MB1OE-16G16	16G	16 cm	0,81 mm × 50 cm	18G	6F
MB1OE-16G20	16G	20 cm	0,81 mm × 60 cm	18G	6F
MB1OE-16G30	16G	30 cm	0,81 mm × 70 cm	18G	6F
MB1OE-18G13	18G	13 cm	0,50 mm × 50 cm	19G	5.5F
MB1OE-18G15	18G	15 cm	0,50 mm × 50 cm	19G	5.5F
MB1OE-18G16	18G	16 cm	0,50 mm × 50 cm	19G	5.5F
MB1OE-18G20	18G	20 cm	0,50 mm × 60 cm	19G	5.5F
MB1OE-18G30	18G	30 cm	0,50 mm × 70 cm	19G	5.5F

Double Lumen catheter

REF	Catheter size	Catheter length	Puncture needle size	Introducer needle size	Vessel Dilator size
MB2OE-4F8	4F	8 cm	0,46 mm × 50 cm	20G	5.5F
MB2OE-4F10	4F	10 cm	0,46 mm × 50 cm	20G	5.5F
MB2OE-4F13	4F	13 cm	0,46 mm × 50 cm	20G	5.5F
MB2OE-4F15	4F	15 cm	0,46 mm × 50 cm	20G	5.5F
MB2OE-4F20	4F	20 cm	0,46 mm × 60 cm	20G	5.5F
MB2OE-5F8	5F	8 cm	0,53 mm × 50 cm	20G	6F
MB2OE-5F10	5F	10 cm	0,53 mm × 50 cm	20G	6F
MB2OE-5F13	5F	13 cm	0,53 mm × 50 cm	20G	6F
MB2OE-5F15	5F	15 cm	0,53 mm × 50 cm	20G	6F
MB2OE-5F20	5F	20 cm	0,53 mm × 60 cm	20G	6F
MB2OE-7F13	7F	13 cm	0,89 mm × 50 cm	18G	8F
MB2OE-7F15	7F	15 cm	0,89 mm × 50 cm	18G	8F
MB2OE-7F20	7F	20 cm	0,89 mm × 60 cm	18G	8F
MB2OE-7F30	7F	30 cm	0,89 mm × 70 cm	18G	8F
MB2OE-8F15	8F	15 cm	0,89 mm × 50 cm	18G	9F
MB2OE-8F20	8F	20 cm	0,89 mm × 60 cm	18G	9F
MB2OE-8F30	8F	30 cm	0,89 mm × 70 cm	18G	9F
MB2OE-8.5F15	8.5F	15 cm	0,89 mm × 50 cm	18G	9F
MB2OE-8.5F20	8.5F	20 cm	0,89 mm × 60 cm	18G	9F
MB2OE-8.5F30	8.5F	30 cm	0,89 mm × 70 cm	18G	9F

Triple Lumen catheter

REF	Catheter size	Catheter length	Puncture needle size	Introducer needle size	Vessel Dilator size
MB3OE-4.5F8	4.5F	8 cm	0,53 mm × 50 cm	20G	6F
MB3OE-4.5F10	4.5F	10 cm	0,53 mm × 50 cm	20G	6F
MB3OE-4.5F13	4.5F	13 cm	0,53 mm × 50 cm	20G	6F
MB3OE-4.5F15	4.5F	15 cm	0,53 mm × 50 cm	20G	6F
MB3OE-4.5F20	4.5F	20 cm	0,53 mm × 60 cm	20G	6F
MB3OE-4.5F30	4.5F	30 cm	0,53 mm × 70 cm	20G	6F
MB3OE-5.5F8	5.5F	8 cm	0,53 mm × 50 cm	20G	6.5F
MB3OE-5.5F10	5.5F	10 cm	0,53 mm × 50 cm	20G	6.5F
MB3OE-5.5F13	5.5F	13 cm	0,53 mm × 50 cm	20G	6.5F
MB3OE-5.5F15	5.5F	15 cm	0,53 mm × 50 cm	20G	6.5F
MB3OE-5.5F20	5.5F	20 cm	0,53 mm × 60 cm	20G	6.5F
MB3OE-5.5F30	5.5F	30 cm	0,53 mm × 70 cm	20G	6.5F
MB3OE-7F13	7F	13 cm	0,89 mm × 50 cm	18G	8F
MB3OE-7F15	7F	15 cm	0,89 mm × 50 cm	18G	8F
MB3OE-7F16	7F	16 cm	0,89 mm × 50 cm	18G	8F
MB3OE-7F20	7F	20 cm	0,89 mm × 60 cm	18G	8F
MB3OE-7F30	7F	30 cm	0,89 mm × 70 cm	18G	8F

Quadro Lumen catheter

REF	Catheter size	Catheter length	Puncture needle size	Introducer needle size	Vessel Dilator size
MB4AO-8.5F13	8.5F	13 cm	0,89 mm × 50 cm	18G	9F
MB4AO-8.5F15	8.5F	15 cm	0,89 mm × 50 cm	18G	9F
MB4AO-8.5F16	8.5F	16 cm	0,89 mm × 50 cm	18G	9F
MB4AO-8.5F20	8.5F	20 cm	0,89 mm × 60 cm	18G	9F
MB4AO-8.5F30	8.5F	30 cm	0,89 mm × 70 cm	18G	9F
