Central Venous Catheter Kits. Optimum Y

«Optimum» CVC kits with Y-shaped Introducer needle offers a comprehensive range across the central venous catheter sizes.

Product Features

Superb material with best biological compatibilities
The flexible polyurethane material features favorable biological compatibility and dual protection against infections. The catheter is detective under the X-ray.
Less intimal damage, irritation and reduces perforation risk
an integral catheter tip, which is more pliant than the catheter body, minimizes the damages to the blood vessel walls during the insertion process.
Fewer risks in puncture
The Introducer Syringe with a check valve allows a spring-wire guide to be placed directly through the syringe into the vessel lumen so there Â¡s less trauma, less blood exposure risk, and virtually no chance for air embolism.
More efficient placements
The guidewire advancer helping you easily straighten the J-tip of the spring-wire guide and insert it with one hand, advancing it to the proper position with your thumb.
More accurate placements
A centimeter-marked spring-wire guide (.025", .032" and .035" diameters available) lets you know how much wire you have inserted and helps you avoid entering the heart. And catheter centimeter markings aid in determining insertion depth.

Central Venous Catheter reduces the risk and vascular trauma due it specially formulated and biocompatible Polyurethane material which provides strength during insertion and also softens at body temperature to conform to the body tissues
Soft Flexible J-Tip Guide wire provides good torque to ensure firm insertion and also prevents vessel perforation
Equipped with Y-type introducer needle with check valve
Specially designed soft & beveled tip for smooth & easy insertion of catheter
Clear and definite marking facilitates correct placement of catheter tip
Radio-opaque catheter with length 150-300 mm available in Single Lumen, Double Lumen, Triple Lumen and Quadro Lumen
Sterile product fro single use

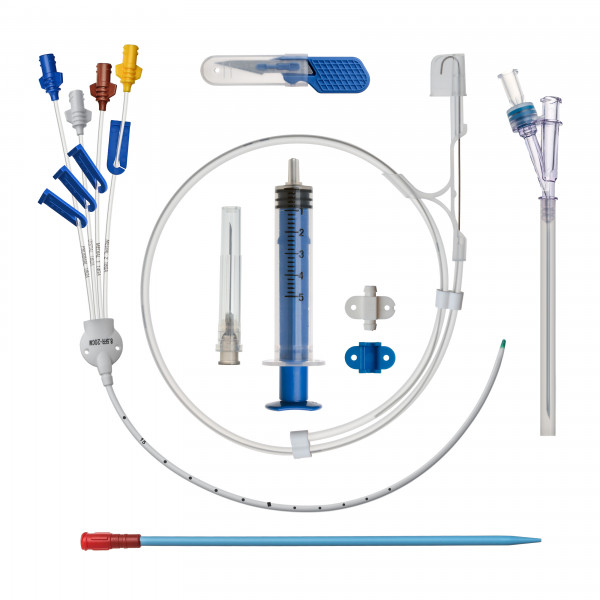

Contains scalpel, Catheter holder and clamp, indwelling catheter, injection cap, extension line clamp and other necessary equipment
Individually tray packed

REF	Catheter size	Catheter length	Puncture needle size	Introducer needle size	Vessel Dilator size
MB1OY-14G15	14G	15 cm	0,81 mm × 50 cm	18G	8F
MB1OY-14G20	14G	20 cm	0,81 mm × 50 cm	18G	8F
MB1OY-14G30	14G	30 cm	0,81 mm × 70 cm	18G	8F
MB1OY-16G15	16G	15 cm	0,81 mm × 50 cm	18G	6F
MB1OY-16G20	16G	20 cm	0,81 mm × 50 cm	18G	6F
MB1OY-16G30	16G	30 cm	0,81 mm × 70 cm	18G	6F
MB1OY-18G15	18G	15 cm	0,50 mm × 50 cm	19G	5.5F
MB1OY-18G20	18G	20 cm	0,50 mm × 60 cm	19G	5.5F
MB1OY-18G30	18G	30 cm	0,50 mm × 70 cm	19G	5.5F

REF	Catheter size	Catheter length	Puncture needle size	Introducer needle size	Vessel Dilator size
MB2OY-7F15	7F	15 cm	0,89 mm × 50 cm	18G	8F
MB2OY-7F20	7F	20 cm	0,89 mm × 50 cm	18G	8F
MB2OY-8F15	8F	15 cm	0,89 mm × 50 cm	18G	9F
MB2OY-8F20	8F	20 cm	0,89 mm × 60 cm	18G	9F
MB2OY-8F30	8F	30 cm	0,89 mm × 70 cm	18G	9F

REF	Catheter size	Catheter length	Puncture needle size	Introducer needle size	Vessel Dilator size
MB3OY-7F15	7F	15 cm	0,89 mm × 50 cm	18G	8F
MB3OY-7F20	7F	20 cm	0,89 mm × 50 cm	18G	8F
MB3OY-8.5F15	8.5F	15 cm	0,89 mm × 50 cm	18G	9F
MB3OY-8.5F20	8.5F	20 cm	0,89 mm × 60 cm	18G	9F
MB3OY-8.5F30	8.5F	30 cm	0,89 mm × 70 cm	18G	9F
