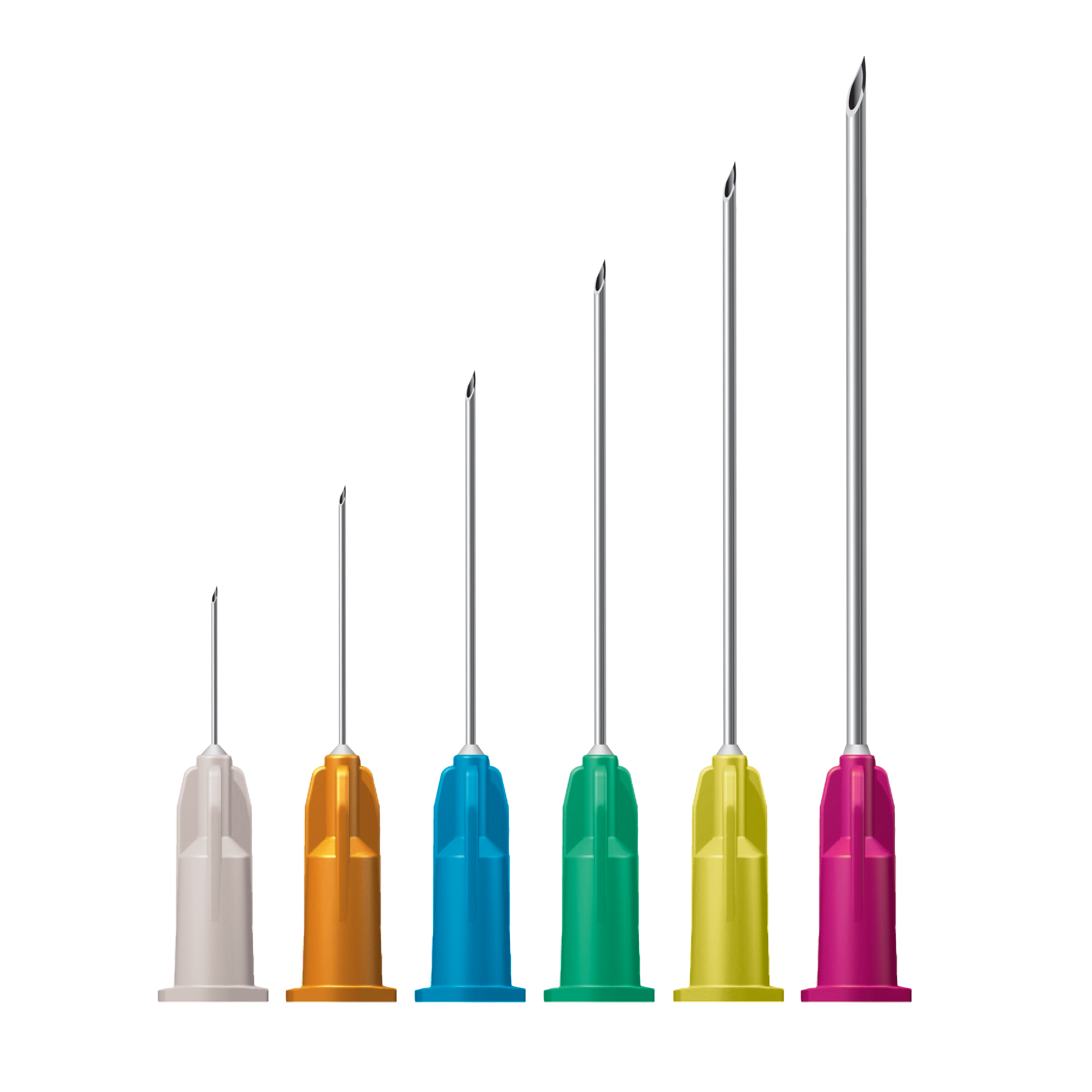

Disposable Needles
- • 14-31G
- • Size color coded
Luer-Lock connection. The special bevel cut on these disposable needles ensures less pain during injection and minimal trauma. These disposable needles also come with a flexible needle shaft and are made of stainless steel.
Product Features
- Delicately-designed needle-point with features of shapness, smooth puncture, less damage.
- To the tissue, less painful feeling to the patient.
- With soft wings for the convenience of flxation.
- With large I.D and high flow.
- Size distinguished by the wing’s color for the clear recongnition.
- Soft pulling after the infusion so that the needle can be pulled into the protective.
- Sheath so as to prevent the medical care persons hurt by the used needle.
- Needle-hub types: PVC hub and ABS hub.
- Wing types: Single-wing ABS and double-wing PVC.
- Packing types: PE bag or paper-plastic bag.
Available Configurations
| Ref. No.: | O.D(MM): | Gauge: | Color: | Needle pipe length: | Bevel Angle | Bevel Angle |
| GCH010114 | 0.25 | 31 G | Blue | ½’’ | Long bevel | |
| GCH010115 | 0.30 | 30 G | Light-yellow | ½’’ | Long bevel | |
| GCH010116 | 0.33 | 29 G | Red | ½’’ | Long bevel | |
| GCH010117 | 0.36 | 28 G | Blue-green | ½’’ | Long bevel | |
| GCH010101 | 0.40 | 27 G | Grey | ½’’ | Long bevel | |
| GCH010102 | 0.45 | 26 G | Brown | ½’’ | Long bevel | |
| GCH010103 | 0.50 | 25 G | Orange | ½’’ | Long bevel | |
| GCH010104 | 0.55 | 24 G | Purple | 1’’ | Long bevel | |
| GCH010105 | 0.60 | 23 G | Blue | 1’’ | Long bevel | |
| GCH010106 | 0.70 | 22 G | Black | 1½’’ | Long bevel | |
| GCH010107 | 0.80 | 21 G | Green | 1½’’ | Long bevel | |
| GCH010108 | 0.90 | 20 G | Yellow | 1½’’ | Long bevel | |
| GCH010110 | 1.10 | 19 G | Cream | 1½’’ | Short bevel | |
| GCH010109 | 1.20 | 18 G | Pink | 1½’’ | Short bevel | |
| GCH010111 | 1.60 | 16 G | White | 1½’’ | Short bevel | |
| GCH010112 | 1.80 | 15 G | Blue-grey | 1½’’ | Short bevel | |
| GCH010113 | 2.10 | 14 G | Pale green | 1½’’ | Short bevel |
