Ventilation Breathing Circuits. Non-heated

• Adult Ø22 mm, pediatric Ø15 mm
• Smoothbore, corrugated

Non-heated ventilation circuits are a type of ventilation circuit that does not include a heating element. These circuits are typically used in situations where patients do not require humidification, as heating can dry out the airways and cause inflammation.

Product Features

Non-heated ventilation circuits are commonly used in emergency and transport situations where a patient needs to be intubated and ventilated quickly, and there is limited equipment available. They are also used in instances where the patient is able to tolerate the dry air, such as during short-term mechanical ventilation.

One advantage of non-heated ventilation circuits is that they are simple and easy to use, requiring minimal set-up time. They are also more cost-effective than circuits that include heating elements, as there are fewer components involved.

The circuit may include one or two water traps for condensation collection, located on the inhalation or exhalation tube, a humidification chamber, a bacterial-viral filter, and a limb.

Corrugated tubing circuits

It offers easy and economical use with its light and useful structures.
Low resistance to air flow.
Provides ideal performance in short-term use.

Smoothbore tubing circuits

With its flexible structure, it contributes to mobility.
Very low resistance to air flow.
Resistant to breaking and bending thanks to its outer coils.
Accumulates minimum water in it with its flat inner structure and reduces the risk of bacterial growth.

Extendible tubing circuits

It takes up less space in usage, storage and waste stages with its adjustable length.
It can stretch up to 3 times their length.
Thanks to these structures, it offers ideal positioning.
The pulling effect on the airway can thus be reduced.

Available Configurations

Non-heated Ventilation Circuits adult corrugated Ø22 mm

Ref: 0114-MR122-05

Length 160 cm, Wye Connector with ports, plain patient elbow.

Ref: 0114-MR122-06

Length 160 cm, Wye Connector with ports, plain patient elbow, water trap, limb 60 cm, straight connector.

Ref: 0114-MR122-07

Length 160 cm, Wye Connector with ports, plain patient elbow, water traps, limb 60 cm, straight connector.

Ref: 0114-MR122-08

Length 160 cm, Wye Connector with ports, plain patient elbow, catheter mount extendible with bronchoscopy port, bacterial-viral filter with heat and moisture exchanger, water traps, limb 60 cm, straight connector.

Non-heated Ventilation Circuits adult smoothbore Ø22 mm

Ref: 0114-MR142-07

Length 180 cm, Wye Connector with ports, plain patient elbow.

Ref: 0114-MR142-08

Length 180 cm, Wye Connector with ports, plain patient elbow, water trap, limb 60 cm, straight connector.

Ref: 0114-MR142-09

Length 180 cm, Wye Connector with ports, plain patient elbow, water traps, limb 60 cm, straight connector.

Ref: 0114-MR142-10

Length 180 cm, Wye Connector with ports, plain patient elbow, catheter mount extendable with bronchoscopy port, bacterial-viral filter with heat and moisture exchanger, water traps, limb 60 cm, straight connector.

Ref: 0114-MR142-11

Length 180 cm, Wye Connector with ports, patient elbow with CO₂ port, water trap, pressure monitoring line, limb 60 cm, water trap, straight connector.

Non-heated Ventilation Circuits pediatric corrugated Ø15 mm

Ref: 0114-MR121-06

Length 160 cm, Wye Connector with ports, plain patient elbow.

Ref: 0114-MR121-07

Length 160 cm, Wye Connector with ports, plain patient elbow, water trap, limb 60 cm, straight connector.

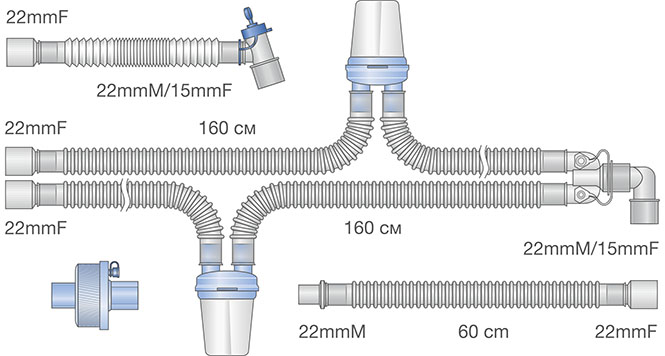

Ref: 0114-MR121-08

Length 160 cm, Wye Connector with ports, plain patient elbow, water traps, limb 60 cm, straight connector.

Ref: 0114-MR121-09

Inhale/exhale tubes corrugated 160 cm, Wye Connector with ports, plain patient elbow, catheter mount extendable with bronchoscopy port, bacterial-viral filter with heat and moisture exchanger with Heat/moisture exchanger, water traps, limb 60 cm, straight connector.

Non-heated Ventilation Circuits pediatric smoothbore Ø15 mm

Ref: 0114-MR141-07

Length 150 cm, Wye Connector with ports, plain patient elbow.

Ref: 0114-MR141-08

Length 150 cm, Wye Connector with ports, plain patient elbow, water trap, limb 60 cm, straight connector.

Ref: 0114-MR141-09

Length 150 cm, Wye Connector with ports, plain patient elbow, water traps, limb 60 cm, straight connector.

Ref: 0114-MR141-10

Length 150 cm, Wye Connector with ports, plain patient elbow, catheter mount extendable with bronchoscopy port, bacterial-viral filter with heat and moisture exchanger, water traps, limb 60 cm, straight connector.

Ref: 0114-MR141-11

Length 150 cm, Wye Connector with ports, patient elbow with CO₂ port, water trap, pressure monitoring line, limb 60 cm, water trap, straight connector.
