Epidural Anesthesia Kits

• Mini
• Standard
• Premium

Epidural anaesthesia Kits enables continued or multiple administration of analgetic agents. Accessory devices increase the comfort of procedure performance.

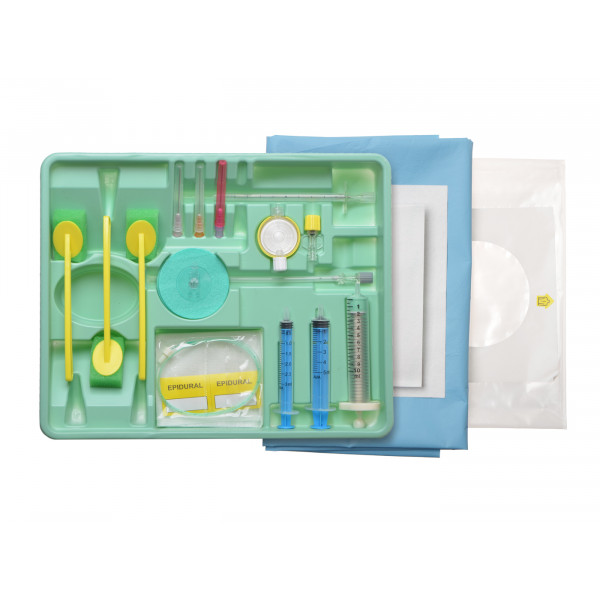

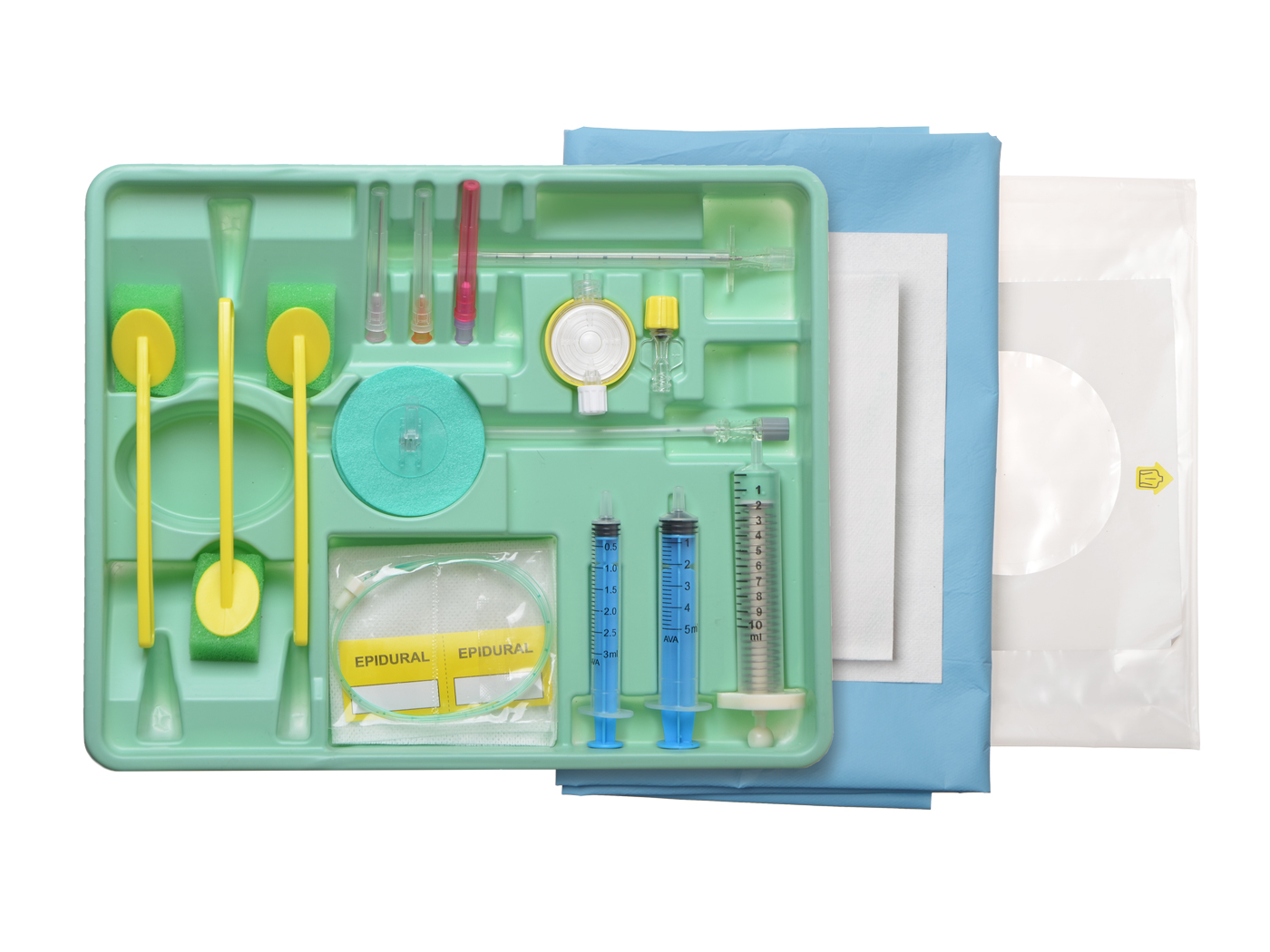

Epidural Anesthesia Sets Premium Common view

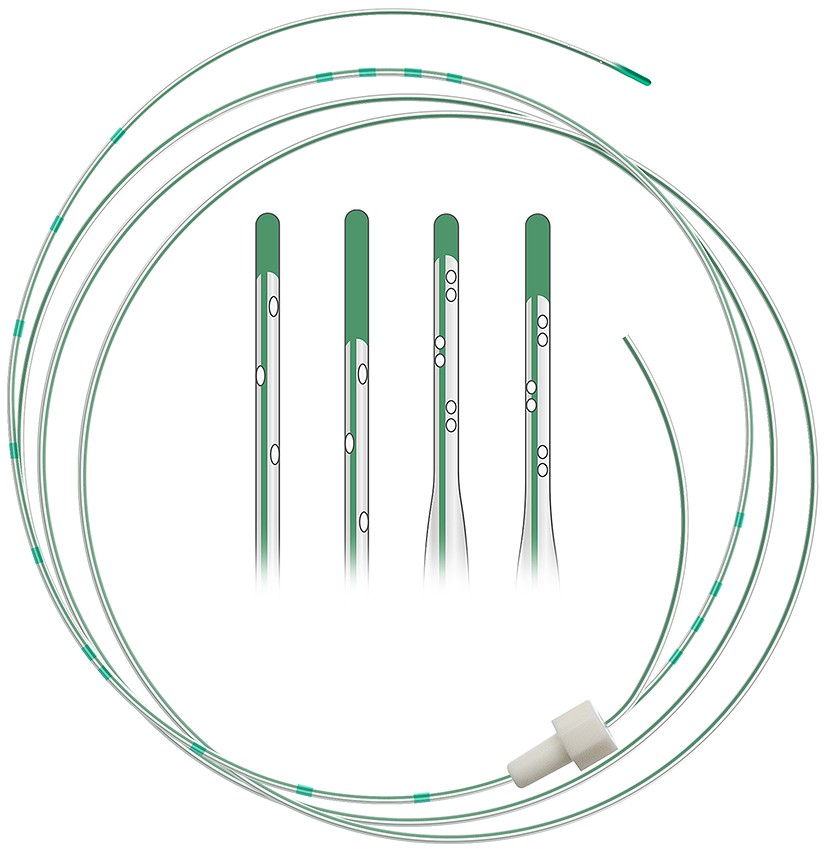

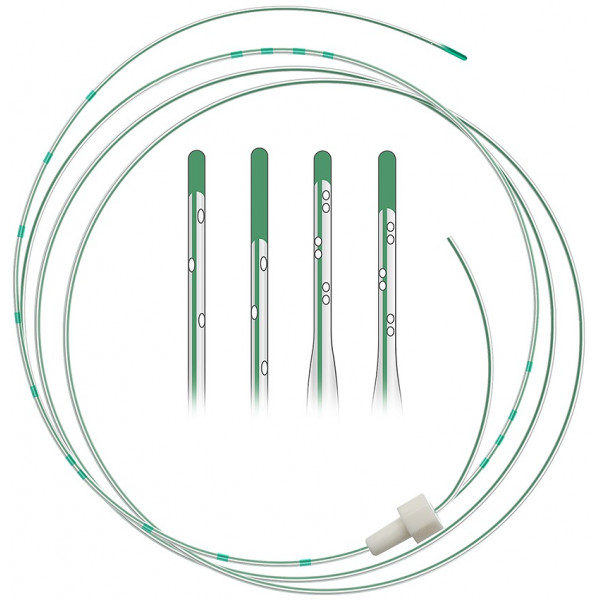

Epidural Anesthesia Sets Epidural catheters types

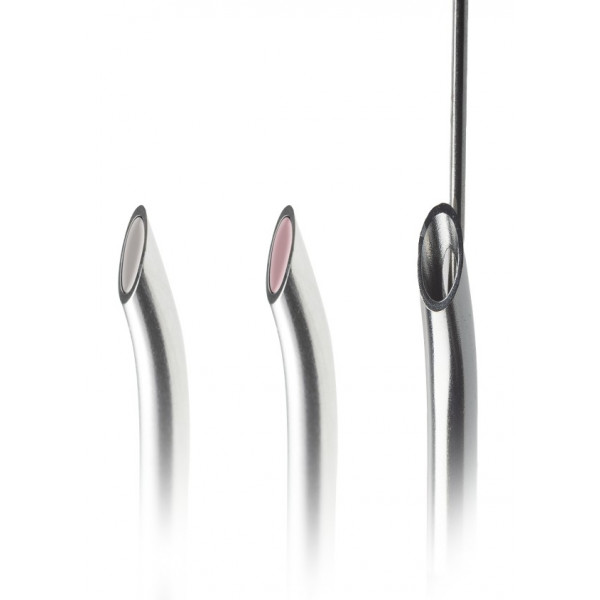

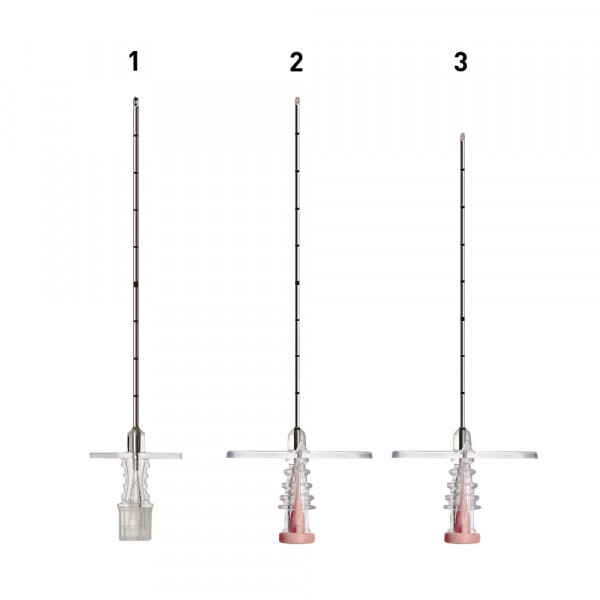

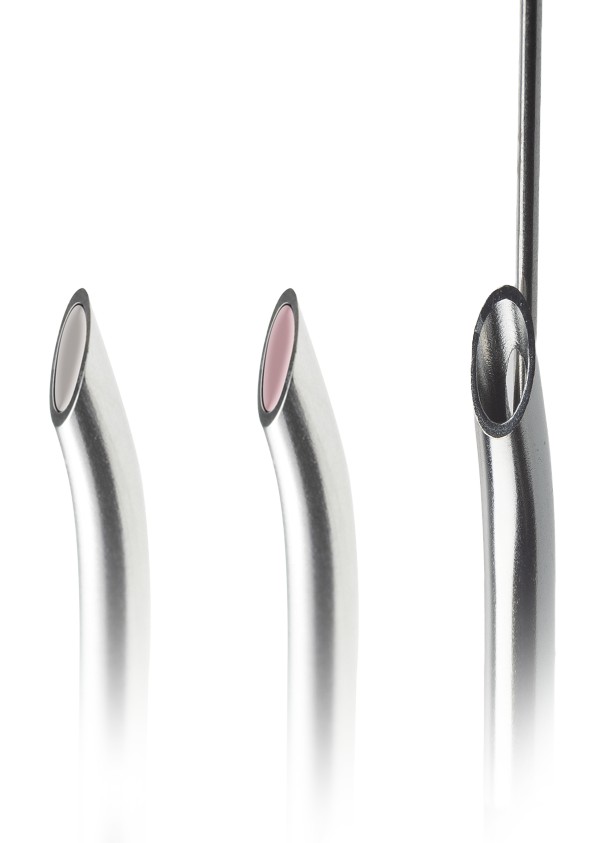

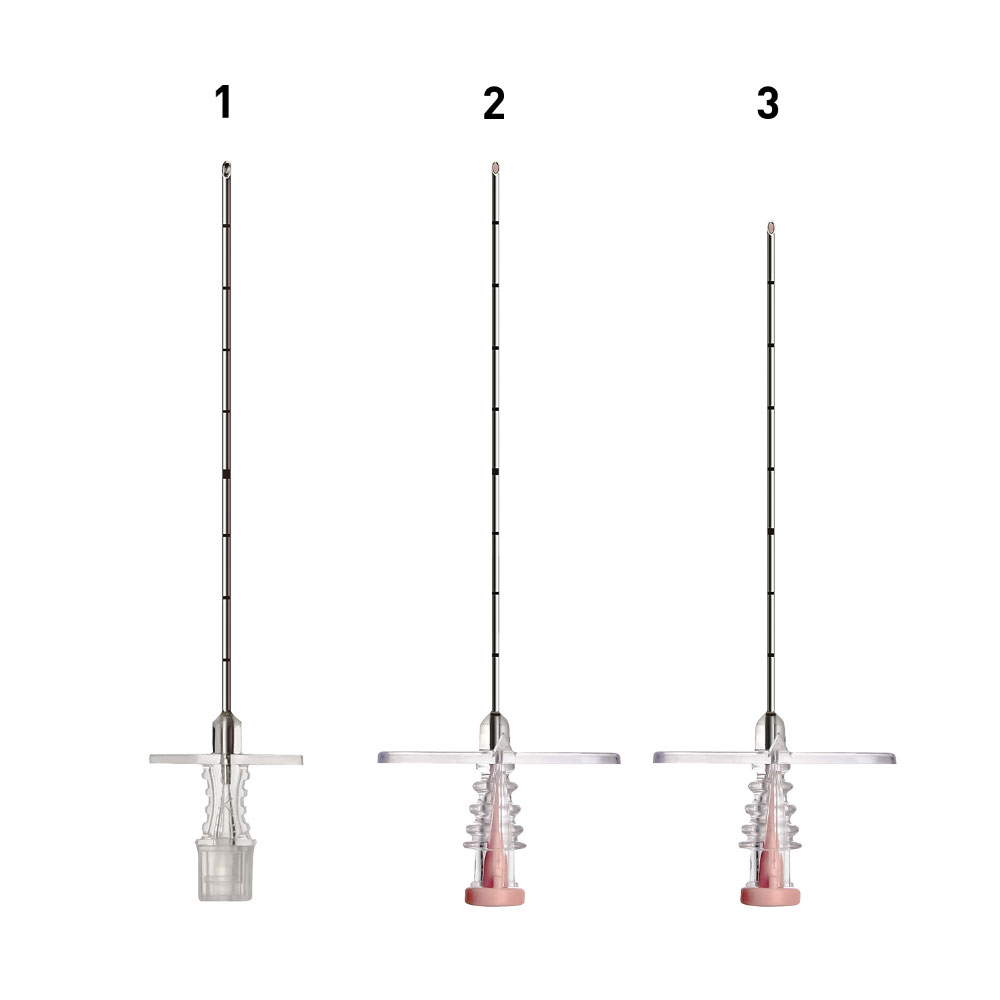

Epidural Anesthesia Sets Epidural needles types

Product Features

Touhy type epidural needle provided with clear depth marking for accurate insertion depth reading . Polished inner bevel edge minimizes the risk of catheter shearing. One of the follows:
- 16G x 80mm
- 18G x 80mm
- 18G x 90mm (hole type)
Epidural catheter with guide ( multiport with mark ). Specially designed for short term and long term anesthesia and pain relief. One of the follows:
- Standard catheter 20G with 3 lateral Holes
- Catheter with Soft Tip 20G and 3 lateral Holes
- Atraumatic Catheter 20G with 6 lateral Holes
- Atraumatic Catheter with Soft Tip 20G and 6 lateral Holes
Standart or Atraumatic 10ml LOR Syringe for clear identification of epidural space
Hydrophobic Epidural Filter is provides additional safety & control against microbial infections – 0.22micron, luer lock
Catheter and Filter Fixing Devices
Ergonomically designed Tuohy Borst Adaptor with wings in 43,5 or 33 mm length. Provided for safe & secure attachment to the catheter for convenience of the procedure
Syringe Slip Lock 2cc-5cc
Epidural Filter
3 sponges
Surgical Drape
Surgical Towel
Gauze
Plaster

Available Configurations

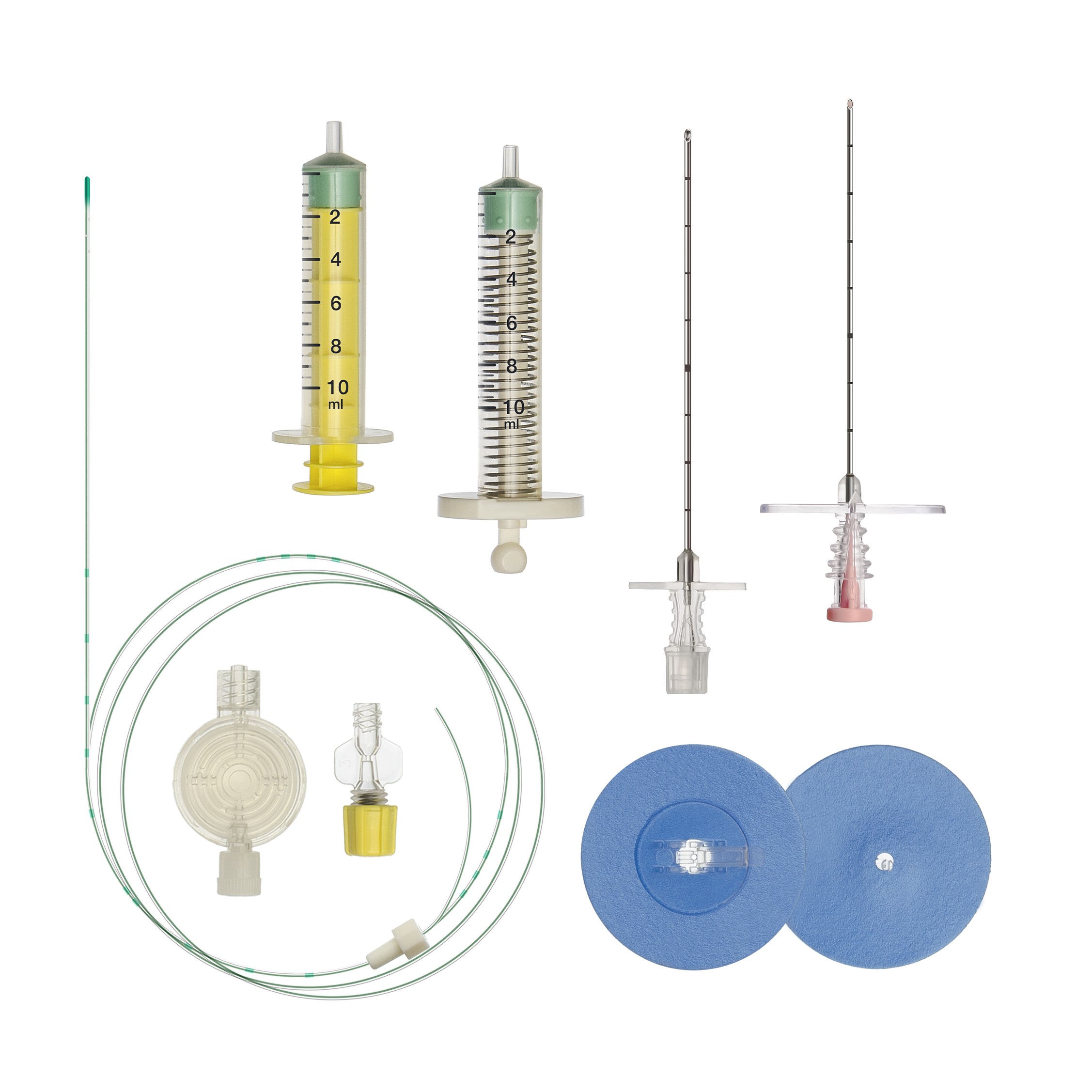

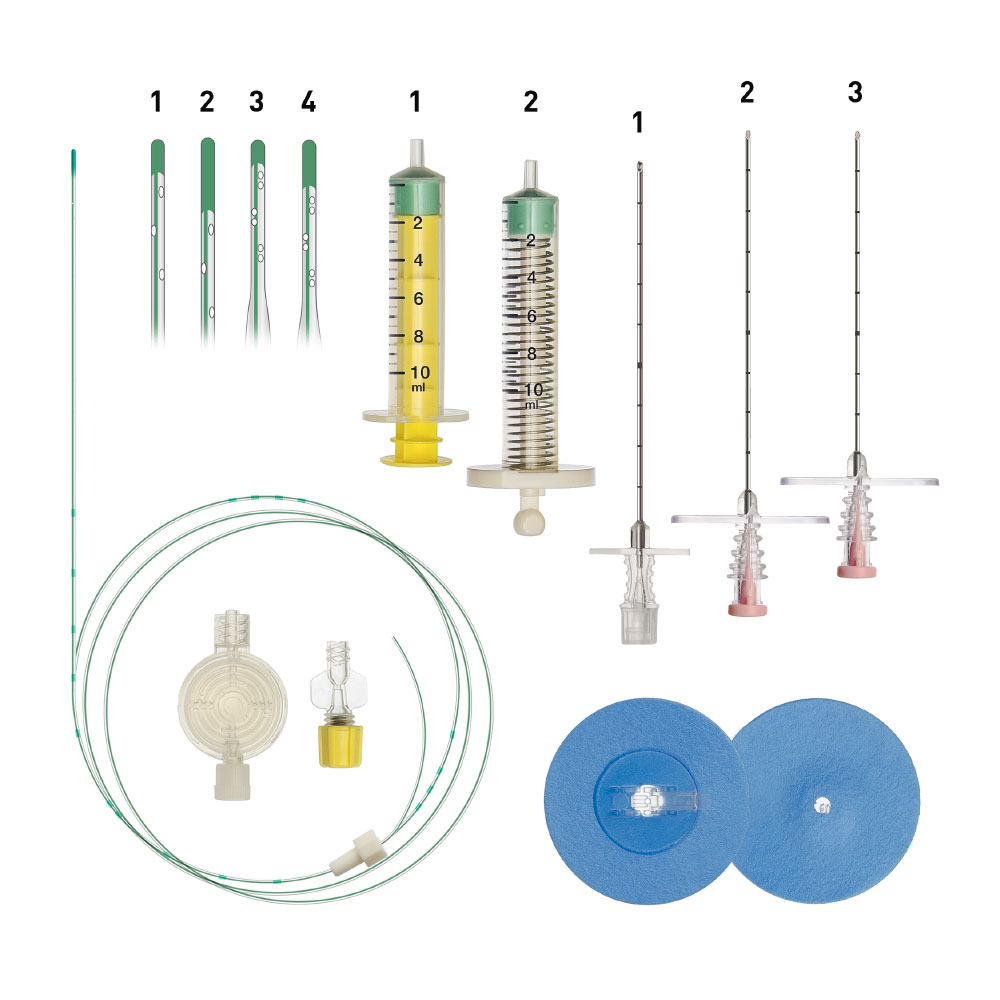

Epidural Anesthesia Kit Standard

Type 1. Epidural catheter 1000 mm with 3 lateral holes
Type 2. Epidural catheter 1000 mm, soft tip, with 3 lateral holes
Type 3. Epidural catheter 1000 mm, laterally tapered, with 6 lateral holes
Type 4. Epidural catheter 1000 mm, soft tip, laterally tapered, with 6 lateral holes
Type 1. Loss of resistance syringe
Type 2. Loss of resistance syringe automatic
Type 1. Tuohy Epidural Needle with standart hub 16G×3½˝ (1.65×90 mm)
Type 2. Tuohy Epidural Needle with Petals type hub 18G×3½˝ (1.34×90 mm)
Type 3. Tuohy Epidural Needle with Petals type hub 18G×3˝ (1.34×80 mm)
Epidural Filter
Adapter
Catheter Fixing Device
Filter Fixing Device

REF	Epidural Catheter Type				Tuohy Needle Type			Loss of resistance syringe (type)		Epidural filter 0.2 µ	Filter Fixing Device	Catheter Fixing Device	Adapter	Qty in box
	1	2	3	4	1	2	3	1	2	Epidural filter 0.2 µ	Filter Fixing Device	Catheter Fixing Device	Adapter	Qty in box
1690	●				●			●		●	●	●	●	1 / 10 / 100
1890	●					●		●		●	●	●	●	1 / 10 / 100
1880	●						●	●		●	●	●	●	1 / 10 / 100
1690A	●				●				●	●	●	●	●	1 / 10 / 100
1890A	●					●			●	●	●	●	●	1 / 10 / 100
1880A	●						●		●	●	●	●	●	1 / 10 / 100
1690S		●			●			●		●	●	●	●	1 / 10 / 100
1890S		●				●		●		●	●	●	●	1 / 10 / 100
1880S		●					●	●		●	●	●	●	1 / 10 / 100
1690SA		●			●				●	●	●	●	●	1 / 10 / 100
1890SA		●				●			●	●	●	●	●	1 / 10 / 100
1880SA		●					●		●	●	●	●	●	1 / 10 / 100
1690H			●		●			●		●	●	●	●	1 / 10 / 100
1890H			●			●		●		●	●	●	●	1 / 10 / 100
1880H			●				●	●		●	●	●	●	1 / 10 / 100
1690HA			●		●				●	●	●	●	●	1 / 10 / 100
1890HA			●			●			●	●	●	●	●	1 / 10 / 100
1880HA			●				●		●	●	●	●	●	1 / 10 / 100
1690SH				●	●			●		●	●	●	●	1 / 10 / 100
1890SН				●		●		●		●	●	●	●	1 / 10 / 100
1880SH				●			●	●		●	●	●	●	1 / 10 / 100
1690SHA				●	●				●	●	●	●	●	1 / 10 / 100
1890SHA				●		●			●	●	●	●	●	1 / 10 / 100
1880SHA				●			●		●	●	●	●	●	1 / 10 / 100

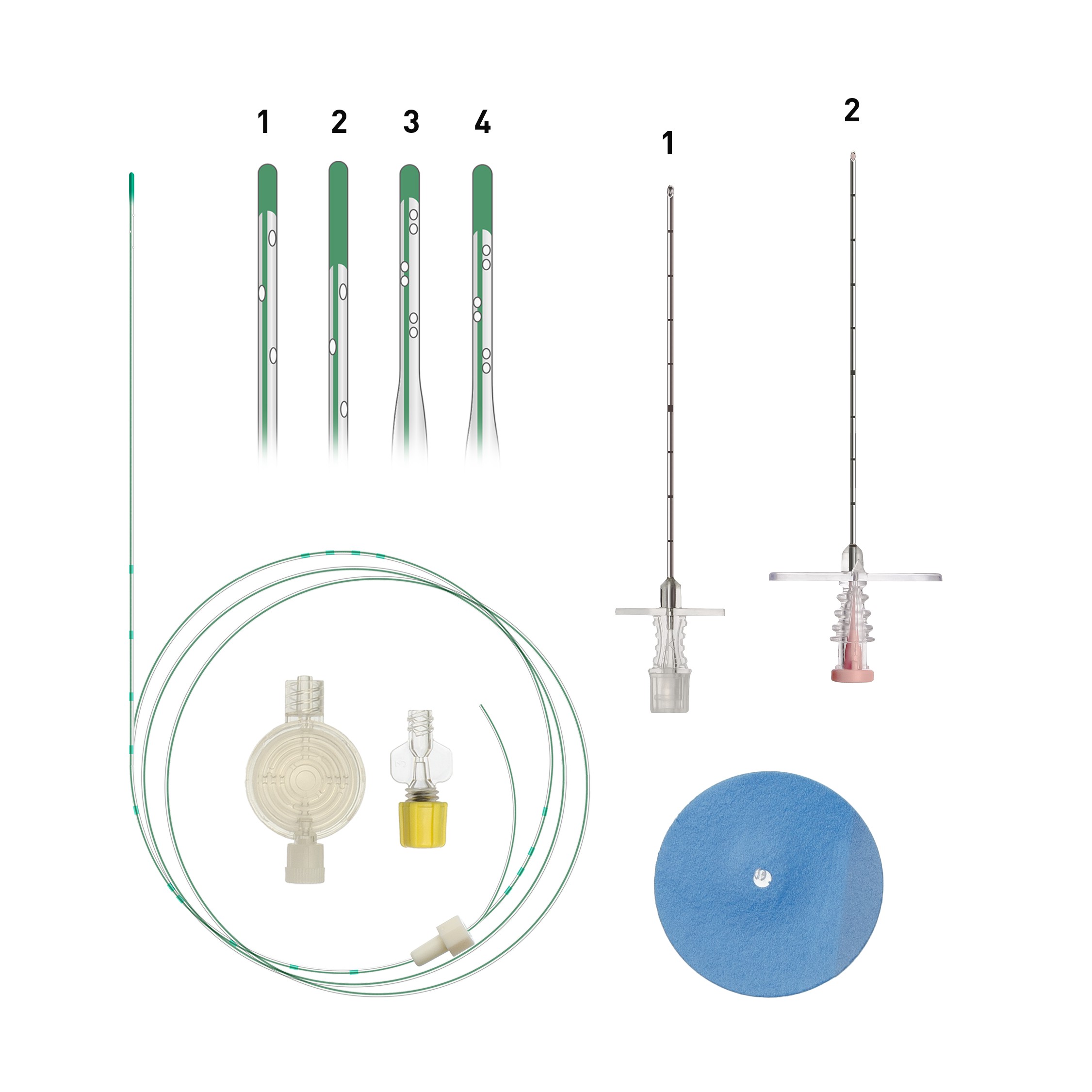

Epidural Anesthesia Kit Mini

Type 1. Epidural catheter 1000 mm with 3 lateral holes
Type 2. Epidural catheter 1000 mm, soft tip, with 3 lateral holes
Type 3. Epidural catheter 1000 mm, laterally tapered, with 6 lateral holes
Type 4. Epidural catheter 1000 mm, soft tip, laterally tapered, with 6 lateral holes
Type 1. Tuohy Epidural Needle with standart hub 16G×3½˝ (1.65×90 mm)
Type 2. Tuohy Epidural Needle with Petals type hub 18G×3½˝ (1.34×90 mm)
Epidural Filter
Adapter
Filter Fixing Device

REF	Epidural Catheter Type				Tuohy Needle Type		Epidural filter 0.2 µ	Filter Fixing Device	Adapter	Qty in box
	1	2	3	4	1	2	Epidural filter 0.2 µ	Filter Fixing Device	Adapter	Qty in box
Set Mini А
M1690F	●				●		●		●	1 / 10 / 100
M1890F	●					●	●		●	1 / 10 / 100
М1690SF		●			●		●		●	1 / 10 / 100
M1890SF		●				●	●		●	1 / 10 / 100
М1690HF			●		●		●		●	1 / 10 / 100
M1890HF			●			●	●		●	1 / 10 / 100
M1690SHF				●	●		●		●	1 / 10 / 100
M1890SHF				●		●	●		●	1 / 10 / 100
Set Mini B
MF	●						●		●	1 / 10 / 100
MSF		●					●		●	1 / 10 / 100
MHF			●				●		●	1 / 10 / 100
MSHF				●			●		●	1 / 10 / 100
Set Mini C
М1690	●				●				●	1 / 10 / 100
M1890	●					●			●	1 / 10 / 100
М1690S		●			●				●	1 / 10 / 100
M1890S		●				●			●	1 / 10 / 100
М1690H			●		●				●	1 / 10 / 100
M1890H			●			●			●	1 / 10 / 100
М1690SH				●	●				●	1 / 10 / 100
M1890SH				●		●			●	1 / 10 / 100
Set Mini D
M2F							●	●		1 / 10 / 100

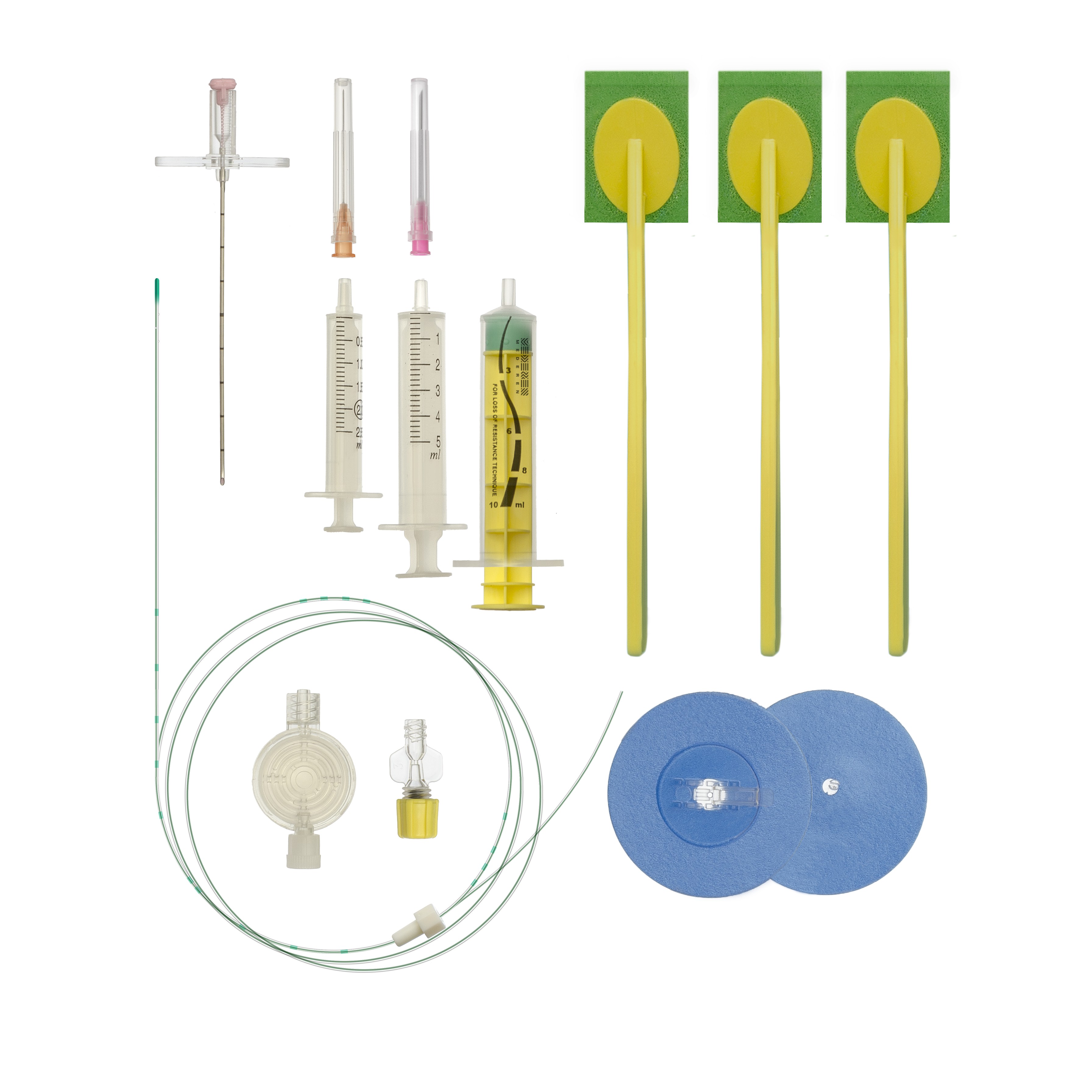

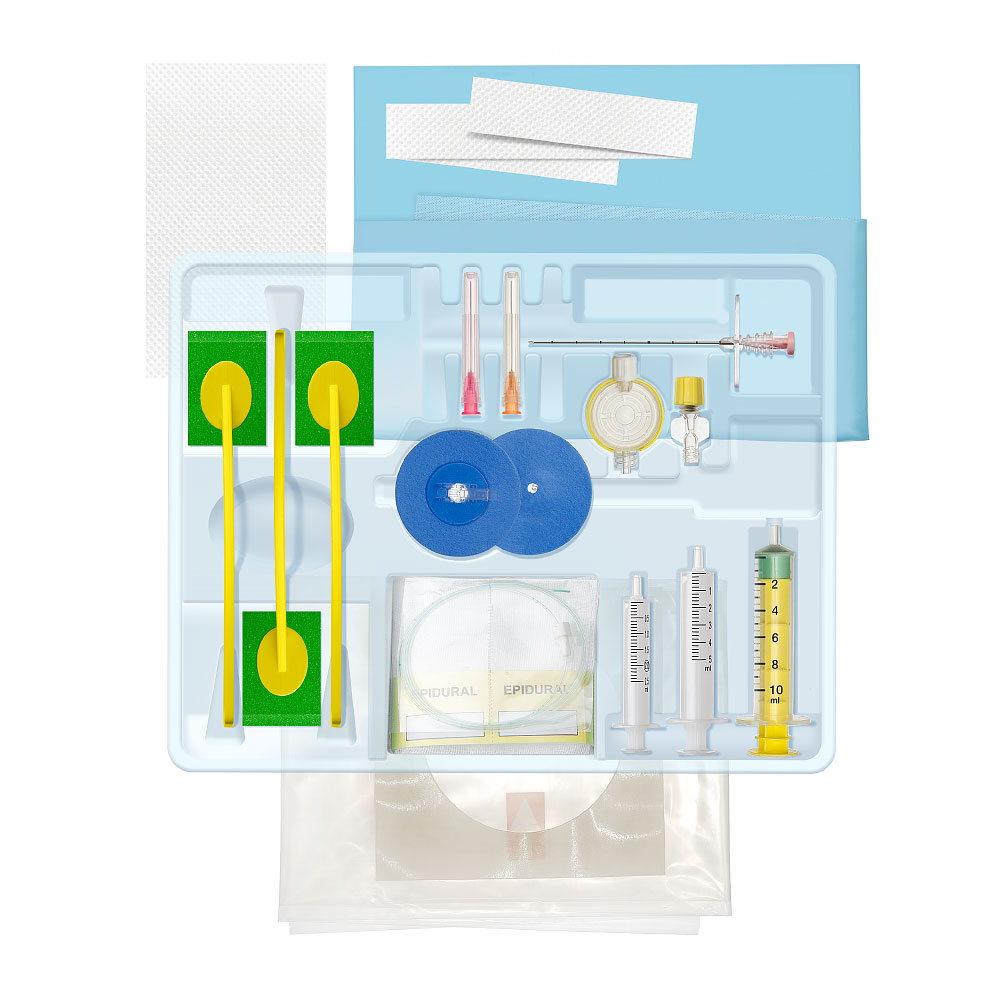

Epidural Anesthesia Kit Premium

Epidural catheter Tuohy - 1 pcs
Катетер эпидуральный 1000мм - 1 pcs
Loss of resistance syringe, 10 ml, Luer ml - 1 pcs
Epidural filter 0.2 µ - 1 pcs
Filter Fixing Device - 1 pcs
Catheter Fixing Device- 1 pcs
Adapter-1 pcs
Syringe 3 ml, Luer ml- 1 pcs
Syringe 5 ml, Luer ml- 1 pcs
Injection needle 18G х 1½" (1.2 х 38 mm) - 1 pcs
Injection needle 25G х 1½" (0.5 х 38 mm) - 1 pcs
Sponges – 3 pcs
Surgical Drape - 1 pcs
Surgical Towel - 1 pcs
Plaster 5х50 cm - 1 pcs
Plaster 10х20 cm - 1 pcs
Gauze 7.5х7.5 cm - 5 pcs

REF	Epidural Catheter Type				Tuohy Needle Type			Loss of resistance syringe (type)		Qty in box
	1	2	3	4	1	2	3	1	2	Qty in box
P1690	●				●			●		1 / 30
P1890	●					●		●		1 / 30
P1880	●						●	●		1 / 30
P1690A	●				●				●	1 / 30
P1890A	●					●			●	1 / 30
P1880A	●						●		●	1 / 30
P1690S		●			●			●		1 / 30
P1890S		●				●		●		1 / 30
P1880S		●					●	●		1 / 30
P1690SA		●			●				●	1 / 30
P1890SA		●				●			●	1 / 30
P1880SA		●					●		●	1 / 30
P1690H			●		●			●		1 / 30
P1890H			●			●		●		1 / 30
P1880H			●				●	●		1 / 30
P1690HA			●		●				●	1 / 30
P1890HA			●			●			●	1 / 30
P1880HA			●				●		●	1 / 30
P1690SH				●	●			●		1 / 30
P1890SH				●		●		●		1 / 30
Р1880SH				●			●	●		1 / 30
P1690SHA				●	●				●	1 / 30
P1890SHA				●		●			●	1 / 30
P1880SHA				●			●		●	1 / 30
